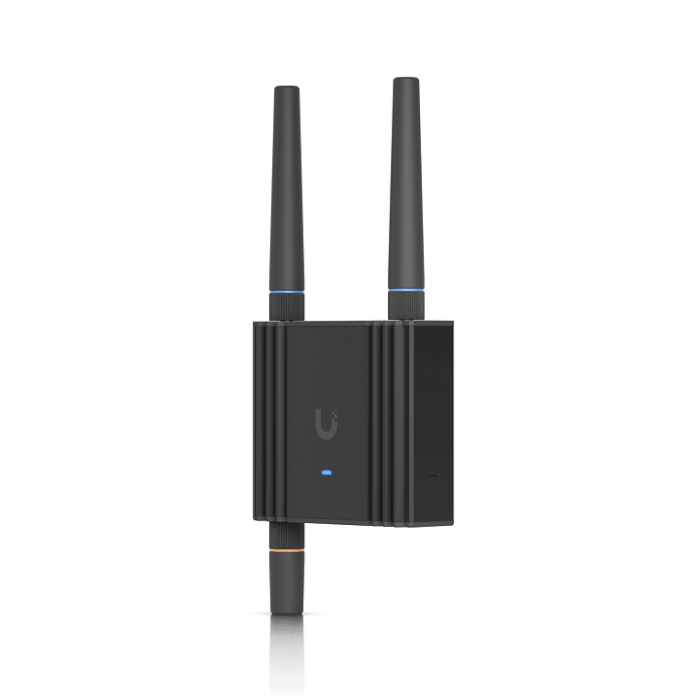

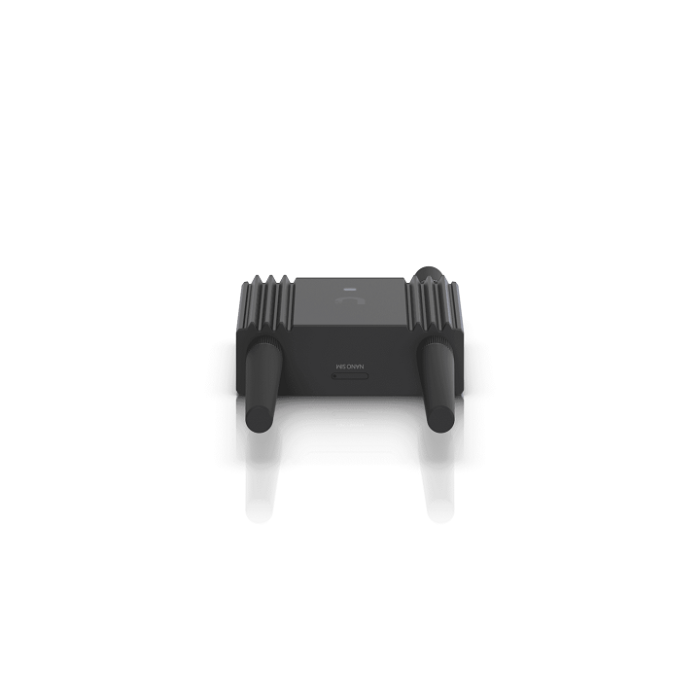

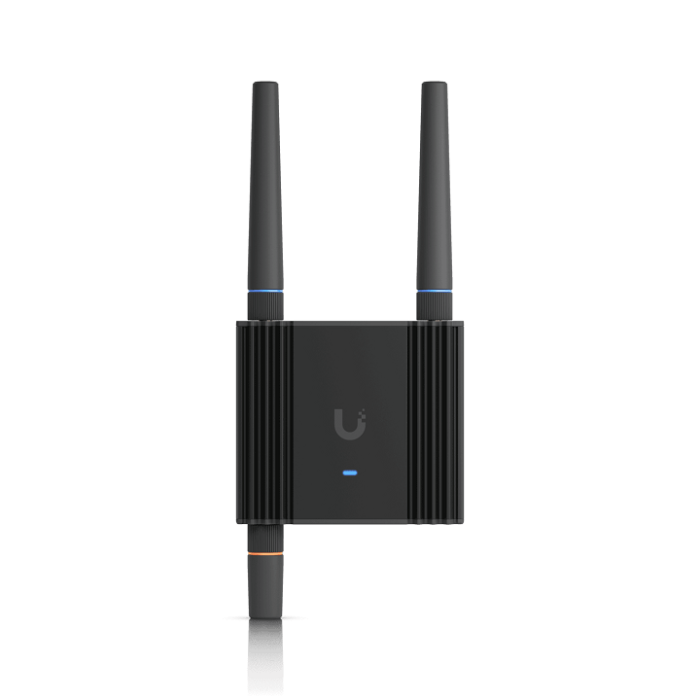

Ubiquiti Mobile Router Ultra - UMR-Ultra
Ultra-compact managed LTE mobile router for IoT applications with integrated LTE, wired WAN, WiFi, automatic failover, and DC power input support.
#1: Site-to-site VPN and VPN client routing

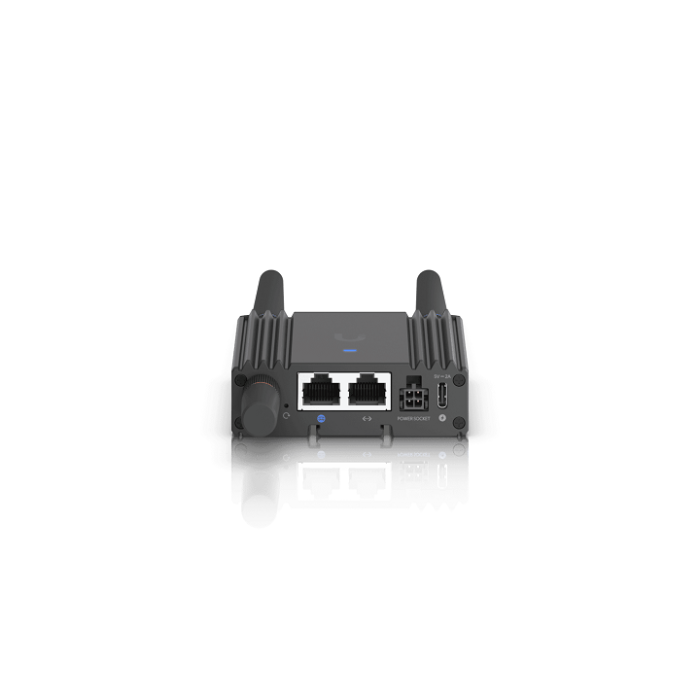

#2: (2) FE RJ45 ports
#3: Automatic failover among LTE, wired WAN and WiFi
#4: Powered using USB Type-C or 4-pin DC power socket
#5: Wall and DIN rail mount options
#6: Optional Mobility Cloud Subscription
#7: WiFi 4 single chain 2.4 GHz radio
| Device Specifications | |
|---|---|
| Mechanical | |
| Dimensions (Without Antennas) | 84 x 82 x 26 mm (3.3 x 3.2 x 1 in) |
| Dimensions (With Antennas) | 193.5 x 82 x 26 mm (7.6 x 3.2 x 1 in) |
| Enclosure Material | Polycarbonate |
| Mount Material |
Wall mount: Polycarbonate DIN rail mount: Steel |
| Mounting | DIN rail, Wall (mounts included) |
| Networking & Connectivity | |
| Networking Interfaces |
(2) Fast Ethernet (FE) RJ45 ports LTE Cat 4 radio WiFi 4 |
| SIM Type | Nano SIM |
| LTE Bands | B2, B4, B5, B12, B13, B14, B25, B26, B66, B71 |
| LTE Throughput | Download: 150 Mbps / Upload: 50 Mbps |
| WiFi Standard | WiFi 4 (802.11n) |
| Supported WiFi Data Rates |
802.11n: 6.5–150 Mbps (MCS0–MCS7, HT20/40) 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 2, 5.5, 11 Mbps |
| Features | |
| WAN Priority & Fallback | Yes |
| Cellular / WiFi / Ethernet WAN | Yes |
| LTE Passthrough Mode | Yes |
| Ethernet Bridge Mode | Yes |
| VPN Client Support | OpenVPN, WireGuard |
| Site-to-Site VPN | IPsec, WireGuard |
| Firewall | Yes |
| Port Forwarding | Yes |
| Static Routes | Yes |
| Hardware | |
| Antennas |
(2) External LTE antennas (1) External WiFi antenna |
| Antenna Ports |
Mobile 1: SMA female (1Rx) Mobile 2: SMA female (1Tx/1Rx) WiFi: RP-SMA female |
| Max. TX Power | 17 dBm |
| WiFi MIMO | 1 × 1 |
| Power Method |
USB Type-C (5V DC / 2A) 4-pin ATX DC (9–30V DC) |
| Max. Power Consumption | 5.7 W |
| Buttons | (1) Factory-reset |
| Environmental | |
| Operating Temperature | -30 to 70C (-22 to 158F) |
| Operating Humidity | 10 to 90% non-condensing |
| Compliance | |
| NDAA Compliant | Yes |
| Certifications | FCC, IC, PTCRB, GCF, AT&T, T-Mobile, Verizon, Wi-Fi Alliance® |
