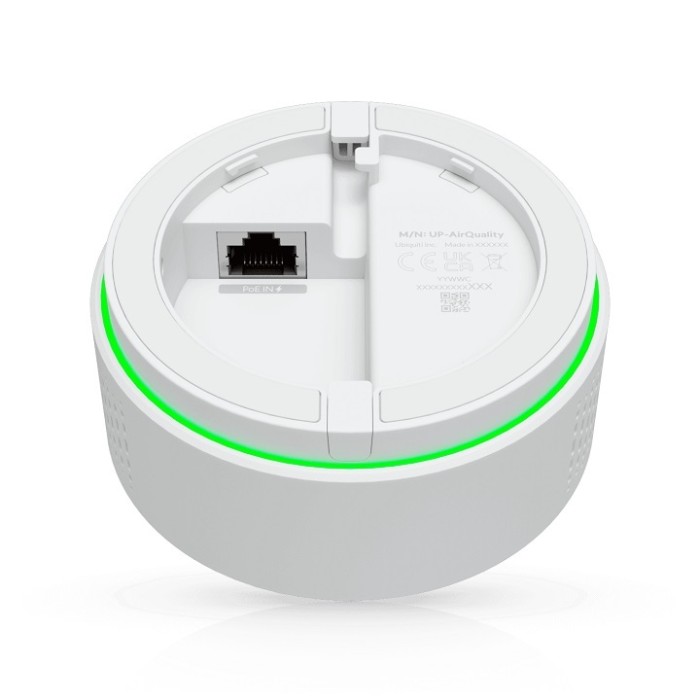

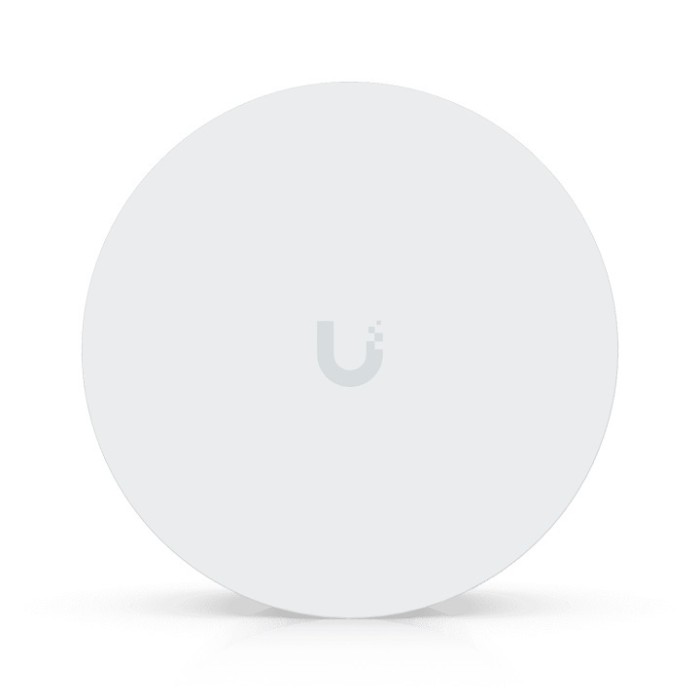

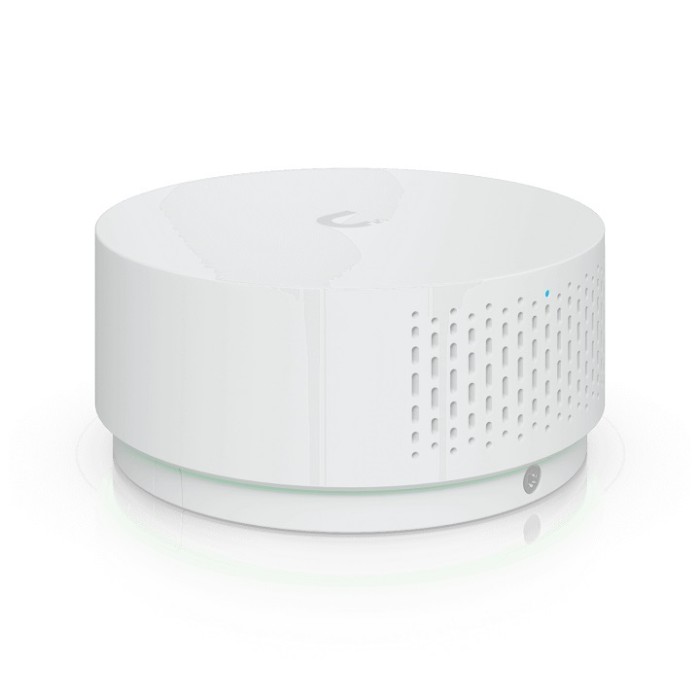

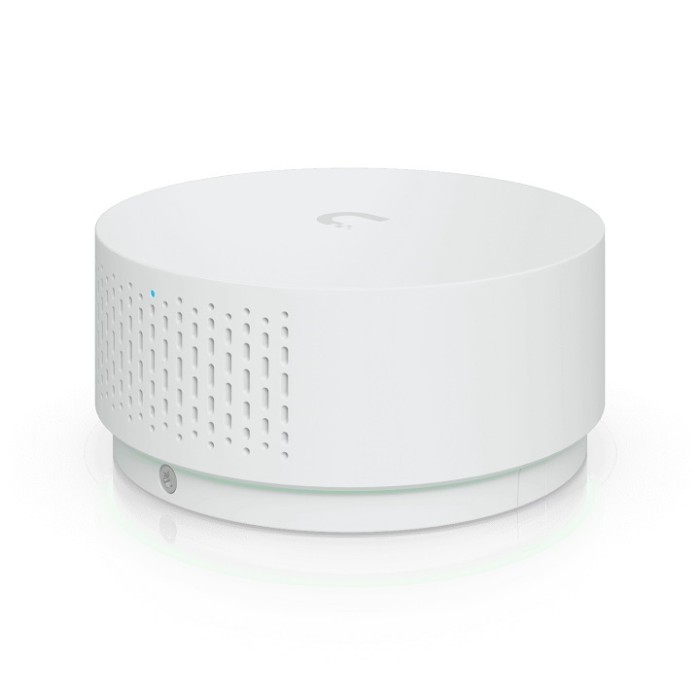

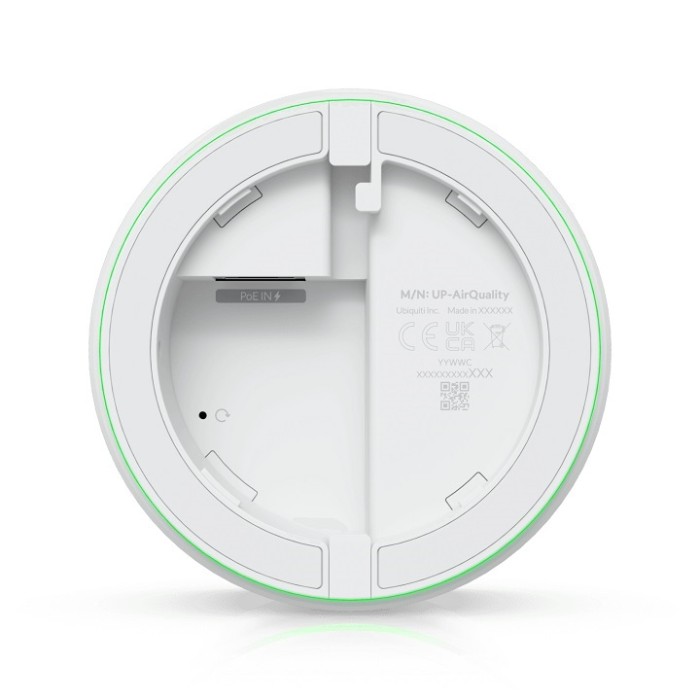

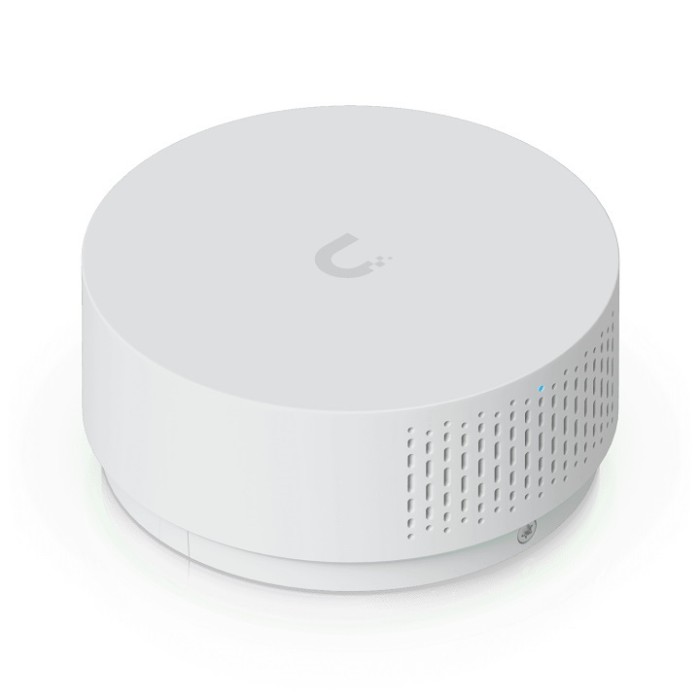

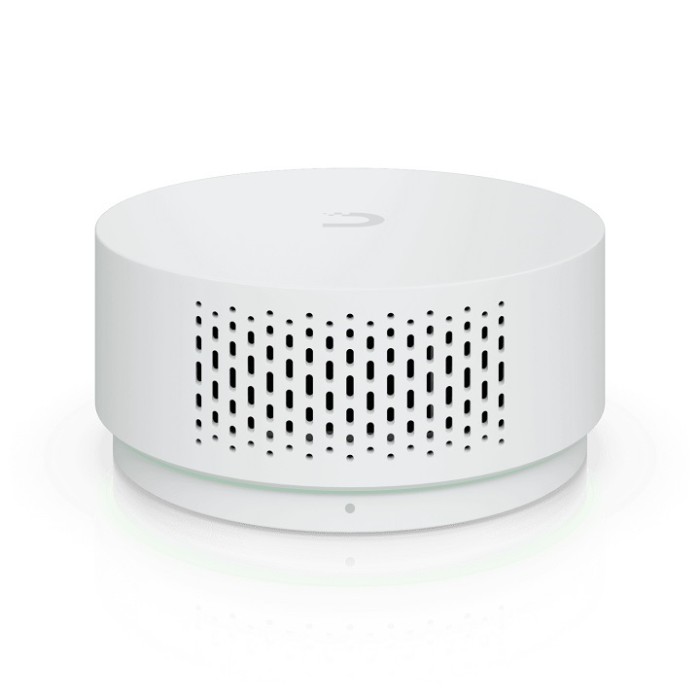

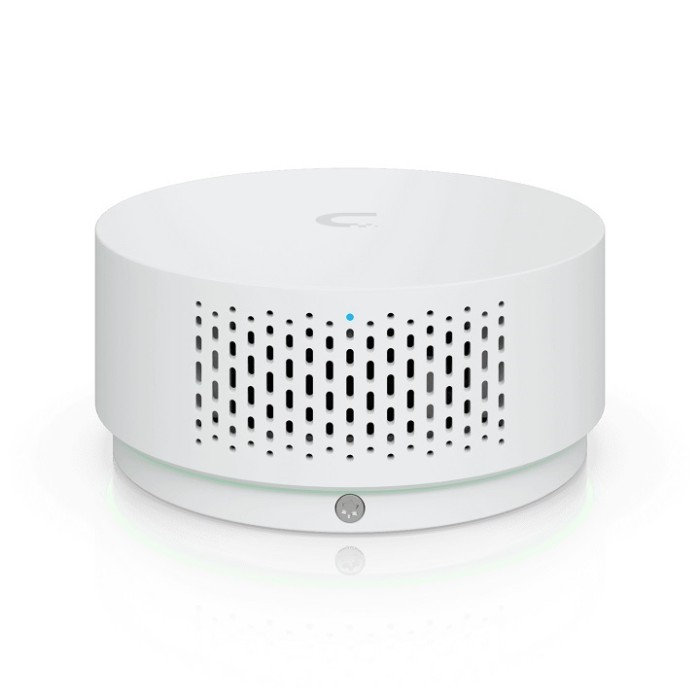

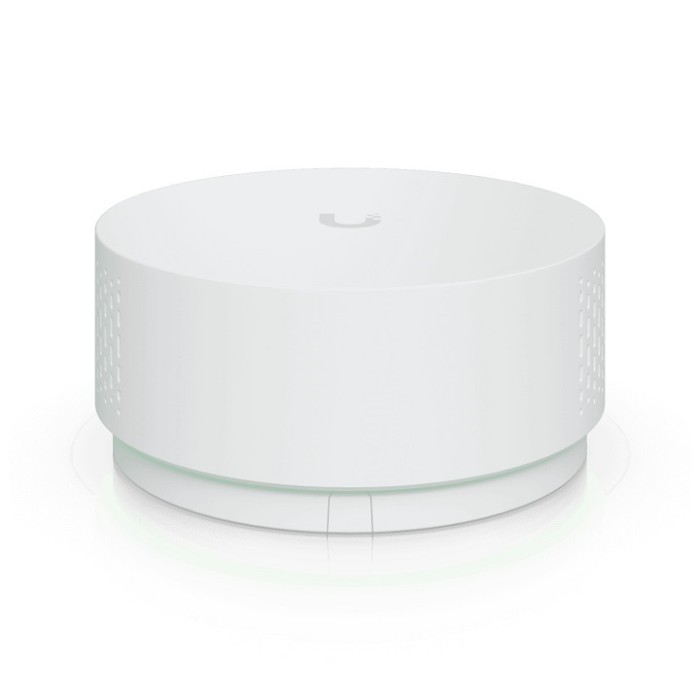

Ubiquiti UP-AirQuality UniFi Protect Vape Detection & Air Quality Sensor
PoE-powered sensor delivering real-time vape detection, air quality monitoring, and instant alerts for schools, workplaces, hospitality, and commercial environments.
| Dimensions | 93 x 40.5 mm (3.7 x 1.6") |
| Mounting | Wall, ceiling and table |
| UniFi Application Suite | Protect |
| Performance | |
| Networking Interface | (1) 10/100 MbE RJ45 port |
| Connectivity | Ethernet |
| Sensor Features | |
| Temperature Sensor | ✓ |
| Humidity Sensor | ✓ |
| Air Quality | CO2, PM1, PM2.5, PM4, PM10, VOC, AQI, Vape |
| Sampling Rate | 1 Hz |
| Sensitivity Range | |
| Temperature Sensor | 0–40 C (32–104 F) |
| Humidity Sensor | 0–90% RH |
| Air Quality | 0–500 |
| CO2 Sensor | 0–40,000 ppm |
| PM1/PM2.5/PM4/PM10 | 0–1000 g/m |
| VOC Index | 1–500 |
| Vape Index | 0–100 |
| Accuracy | |
| PM1/PM2.5 | 0–100: +(5 µg/m + 5% m.v.) 100–1000: +10% m.v. |
| PM4/PM10 | 0–100: +25 g/m 100–1000: +25% m.v. |
| VOC | +5% |
| CO2 | 400–2000: +(50 ppm + 3% of reading) 2000–5000: +(50 ppm + 5% of reading) |
| Temperature | +1 C (1.8 F) |
| Relative Humidity | +8% RH |
| Hardware | |
| Max. Power Consumption | 2.2W |
| Supported Voltage Range | 37–57V |
| Power Method | PoE |
| Weight | 190 g (6.7 oz) |
| Enclosure Material | Polycarbonate |
| Mount Material | Aluminum alloy, stainless steel |
| LEDs | (1) Status: White/Blue (1) Air quality indicator: Red/Green/Yellow/Violet |
| Operating Environment | Indoor use only |
| Ambient Operating Temperature | Recommended 10 to 35 C (50 to 95 F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| NDAA Compliant | ✓ |
| Software | |
| Application Requirements | |
| Web Application | UniFi Protect: Version 7.1 or later. |
| Mobile App | UniFi Protect iOS: Version 3.6.0 or later. Android: Version 3.5.0 or later. |
