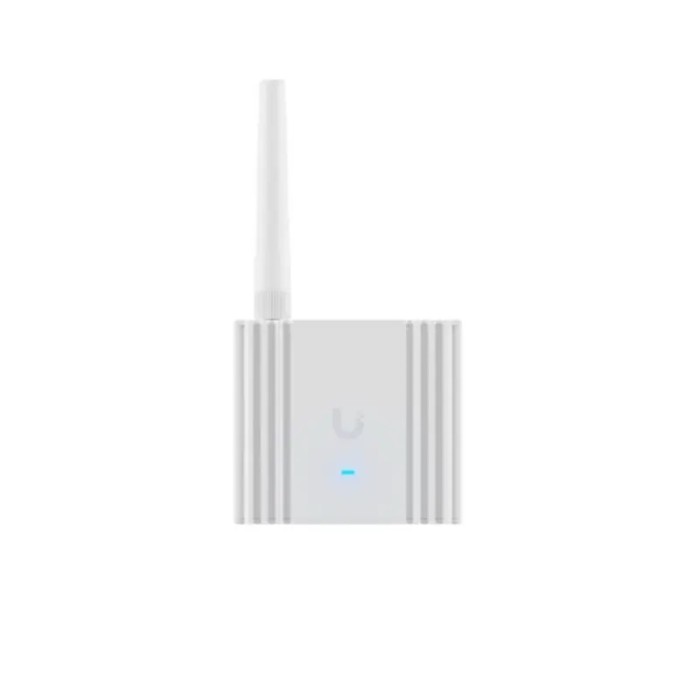

Ubiquiti SuperLink - UP-SuperLink-EU
#1: Proprietary super long-range, low-latency wireless gateway for UniFi Protect Sensors.
#2: 96 SuperLink clients with up to 2 km link range (line of sight)
#3: 7 UP-Sense (BLE) devices with improved long-range connectivity
#4: Powered using PoE or USB Type-C
#5: Wall and DIN rail mount options
#6: SuperLink Setup Guide
| Mechanical | |
|---|---|
| Dimensions | With antenna: 159.3 x 81.9 x 26 mm (6.3 x 3.2 x 1") With DIN rail mount: 159.3 x 81.9 x 38.5 mm (6.3 x 3.2 x 1.5") With wall mount: 159.3 x 81.9 x 30.5 mm (6.3 x 3.2 x 1.2") |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Polycarbonate |
| Hardware | |
| Networking Interface | (1) 10/100 MbE RJ45 port |
| Mobile App | UniFi Protect iOS and Android |
| Power Method | PoE USB Type-C, 5V, 1A (Optional) |
| Max. Power Consumption | 3.4W |
| ESD/EMP Protection | Air: +8kV Contact: +4kV |
| Antenna Gain | Bluetooth: 3 dBi SuperLink: 1 dBi |
| Max. TX Power | Bluetooth: 10 dBm SuperLink: 27 dBm |
| Max. Client Count | Bluetooth: 7 SuperLink: 96 |
| LED | (1) Blue/white |
| Button | (1) Factory reset |
| Mounting | Wall, DIN rail |
| Ambient Operating Temperature | 0 to 40 C (32 to 104 F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
