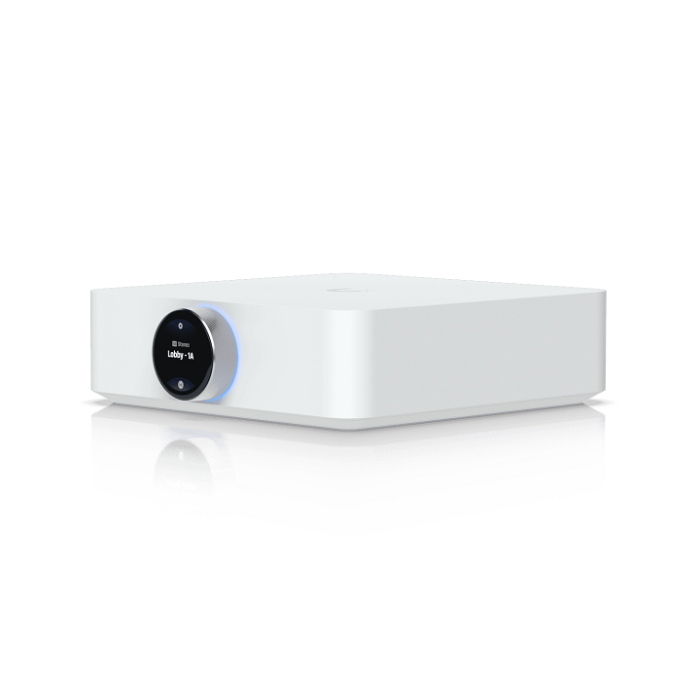

Ubiquiti PowerAmp Premium Speaker Amplifier - UPL-Amp-W-EU - White
Premium speaker amplifier designed for high-fidelity multi-zone audio streaming and immersive spatial sound experiences.
| Device Specifications | |
|---|---|
| Mechanical | |
| Dimensions (With Knob) | 217 x 236.8 x 63.7 mm (8.5 x 9.3 x 2.5 in) |
| Dimensions (Without Knob) | 217 x 217 x 63.7 mm (8.5 x 8.5 x 2.5 in) |
| Enclosure Material | Chassis: Polycarbonate Knob: Aluminum |
| Mounting | Compact Desktop |
| Available Colors | Black, White |
| Audio | |
| Amplifier Class | Class D |
| Per-Channel Continuous Power | 130 W 8 , 1 kHz, < 0.05% THD+N (EIA CEA-490-A) 260 W 4 , 1 kHz, < 0.09% THD+N (EIA CEA-490-A) |
| Audio Output Mode | Mono / Stereo |
| Surround Formats | Dolby Atmos Dolby TrueHD Dolby Digital Dolby Digital Plus Stereo PCM Multichannel PCM Dolby Multichannel PCM |
| Zone Support | Up to 32 PowerAmps |

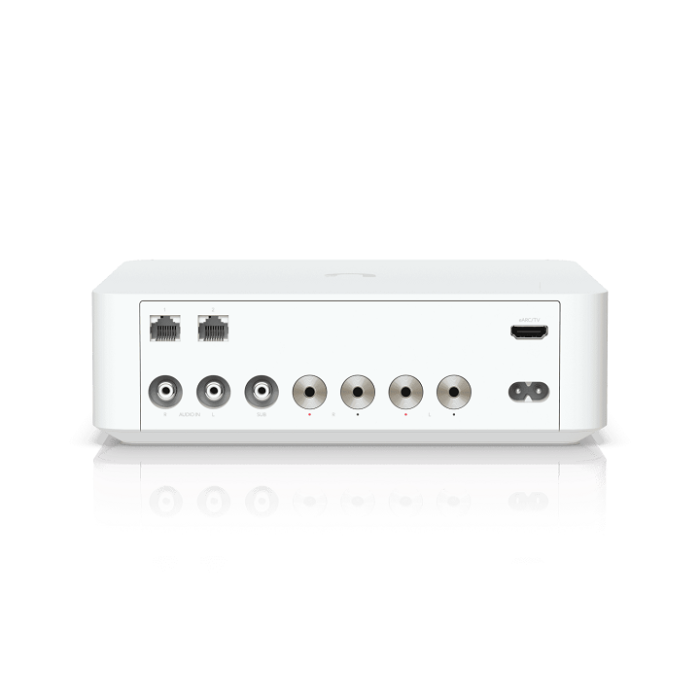

| Audio Inputs | (1) HDMI eARC input (2) RCA analog inputs (L/R) |
| Audio Outputs | (1) RCA analog subwoofer output (2) Speaker terminal outputs with (2) banana plugs |
| Streaming Services | AirPlay, Spotify Connect, Soundtrack Your Brand |
| Hardware | |
| Networking Interface | (2) GbE RJ45 ports |
| Wi-Fi Standards | 802.11 a/b/g/n/ac |
| Wireless Connectivity | 5 GHz Wi-Fi, 20/40/80 MHz bandwidth 2.4 GHz Wi-Fi, 20/40 MHz bandwidth |
| Power Method | Universal AC input, 100–240 V AC, 2.5 A Max., 50/60 Hz |
| Max. Power Consumption | 17 W |

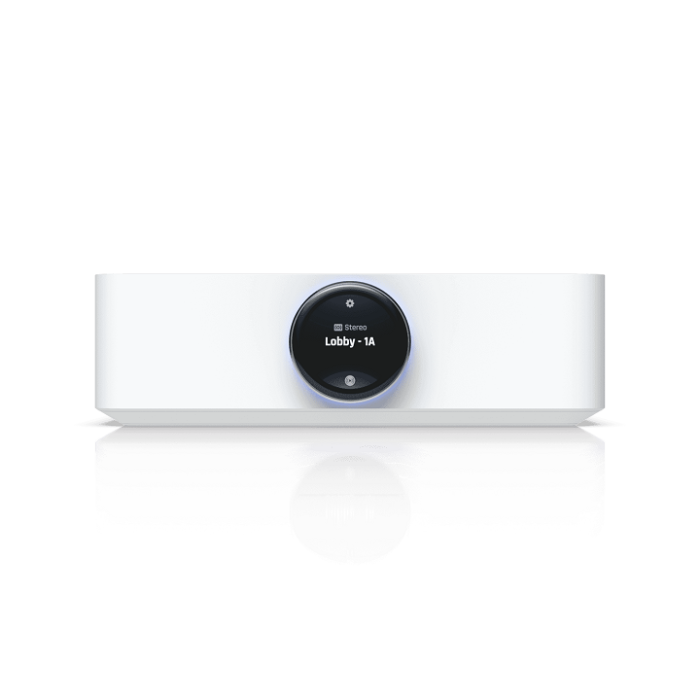

| Display | 1.43" rotary knob with touchscreen |
| Buttons | (1) Factory-reset |
| Environmental | |
| Operating Temperature | -5 to 40C (23 to 104F) |
| Operating Humidity | 5 to 90% non-condensing |
| Compliance | |
| NDAA Compliant | Yes |
| Certifications | FCC, IC, CE |
| Software | |
| Application Requirements | UniFi Play iOS and Android (Version 1.0.0 and later) |
