DrayTek 9801A3Q4 Best price in Dubai UAE
Supports CloudAP and FitAP modes for flexible deployment across different network architectures.
Enables unified wired and wireless network management through H3C Cloudnet and AD-Campus platforms.
Uses Wi-Fi 6 OFDMA and DL/UL MU-MIMO to improve network efficiency, reduce latency, and support high-density connections.
Features BSS Coloring and Target Wake Time to reduce interference, improve spectrum reuse, and enhance power efficiency.
Provides WPA2/WPA3 security, rogue device monitoring, WIPS protection, and encrypted CAPWAP links.
Optimizes wireless performance with intelligent RF management, fault diagnosis, traffic optimization, and fast roaming using 802.11k/v/r.
Supports application identification, traffic prioritization, secure boot protection, and energy-saving technologies.
DrayTek 9801A3Q4 Buy with Best Price from authorized supplier for H3Cproducts in UAE H3C WA6520H – Wi-Fi 6 Dual-Radio High-Performance Access Point Distributor for Africa dsrtech.ae, H3C Dubai
Hardware Specifications
| Weight | 0.35 kg |
| Dimensions (W × D × H) | 160 × 86 × 39 mm (without mounting brackets) |

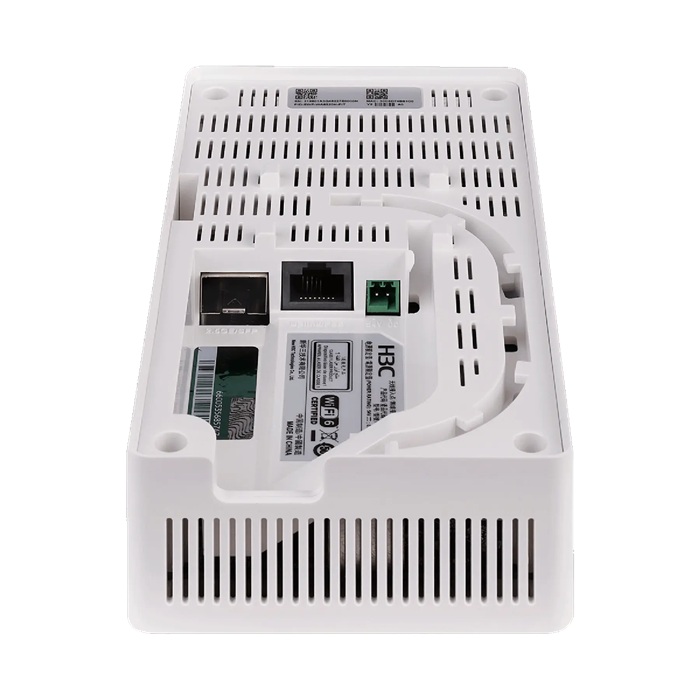

| Interfaces | 4 × 100/1000M RJ-45 Ethernet ports; 1 × 100/1000M RJ-45 uplink PoE input; 1 × 1000M/2.5G SFP port; 1 × RJ-45 management console port |
| PoE Input | 802.3af via uplink Ethernet port |
| Local Power Supply | 54V DC Phoenix Connector power adapter (sold separately) |
| Antenna Type | Built-in omnidirectional antenna |
| Antenna Gain | 5GHz: 6dBi peak, 5dBi equivalent; 2.4GHz: 4dBi peak, 3dBi equivalent |
| Built-in IoT Module | BLE 5.1 |
| Frequency Bands | 2.400–2.4835GHz ISM; 5.150–5.250GHz U-NII-1; 5.250–5.350GHz U-NII-2A; 5.470–5.725GHz U-NII-2C; 5.725–5.850GHz U-NII-3/ISM |
| Modulation Technology | 802.11b: DSSS; 802.11a/g/n/ac: OFDM; 802.11ax: OFDMA |
| Modulation Modes | 802.11b: BPSK, QPSK, CCK; 802.11a/g/n: BPSK, QPSK, 16QAM, 64QAM; 802.11ac: up to 256QAM; 802.11ax: up to 1024QAM |
| Data Rates | 802.11b: 1–11Mbps; 802.11a/g: 6–54Mbps; 802.11n: up to 600Mbps; 802.11ac: up to 6,933Mbps; 802.11ax: up to 9,608Mbps |
| Maximum Transmit Power | 5GHz: 23dBm; 2.4GHz: 23dBm (excluding antenna gain) |
| Adjustable Power Granularity | 1dBm increments |
| Reset Button | Factory reset and Cloud AP/Fit AP mode control |
| Security Slot | Kensington security slot |
| Installation | Wall mounting; bracket preinstalled on the back |
| LED Indicators | Yellow, green and blue status LEDs for boot, association, operation and fault states |
| Operating Temperature | 0°C to +40°C |
| Storage Temperature | −40°C to +70°C |
| Humidity | 5%–95% non-condensing (operating and storage) |
| Protection Class | IP41 |
| Surge Protection | 4kV common mode |
| Power Consumption | 15W including USB; 12.5W excluding USB |
| Safety Standards | IEC/EN 62368-1, GB 4943.1, SRRC |
| EMC Standards | EN 301 489-1/-3/-17, EN 60601-1-2, EN 55032/55035, CISPR 32/35, AS/NZS CISPR32, ICES-003 Issue 7, GB/T 9254.1/.2, GB 17625.1/.2, IEC/EN 61000-4-2/-3/-4/-5/-6/-8/-11 and IEC/EN 61000-3-2/-3-3 |
| Radio Standards | ETSI EN 300 328, EN 301 893, EN 300 440, FCC Part 15E |
| RoHS Standards | Directive 2011/65/EU, (EU) 2015/863 |
| Health Standards | EN 50385:2017, EN IEC 62311:2020 |
| MTBF (25°C) | 2,330,121 hours |
Software Specifications
| Product Type | Wall-plate, dual-radio Wi-Fi 6 AP supporting 802.11a/b/g/n/ac/AC Wave 2/ax |
| Operating Modes | Fit AP (Wireless LAN Controller managed) and Cloud AP (H3C intelligent O&M platform managed); modes switchable via CLI, controller, cloud platform or reset button |
| Supported Controllers | H3C WX2800X, WX3800X and WX5800X Series |
| Frequency and MIMO | 5GHz: 2×2:2, 2.4Gbps; 2.4GHz: 2×2:2, 575Mbps |
| Channel Bandwidth | 5GHz: 20/40/80/160MHz; 2.4GHz: 20/40MHz |
| Maximum Transmission Speed | 2.975Gbps (5GHz 2×2 at 160MHz and 2.4GHz 2×2 at 40MHz) |
| Maximum Clients | 256 (128 per band; actual capacity varies by environment) |
| Maximum BSSIDs | 8 per radio |
| Wi-Fi 6 Features | Uplink/downlink MU-MIMO and OFDMA, Target Wake Time (TWT), BSS coloring and spatial reuse |
| WLAN Features | A-MPDU, A-MSDU, LDPC, LACP, STBC, DFS, TxBF, CCF, MRC and CDD/CSD |
| Tunnel Management | CAPWAP, AC discovery, NAT, DTLS encryption, IPv4/IPv6, AC time synchronization, dual AC tunnels, PPPoE client and IPsec in Cloud AP mode |
| RF Management | Automatic channel, power and bandwidth adjustment; SSID hiding; client limits; centralized, local and policy forwarding; VLAN binding by interface, SSID or MAC; VLAN/SSID user isolation |
| Load Balancing and Band Steering | Traffic-, user- and frequency-band-based load balancing; 5GHz band steering |
| Roaming | 802.11k/v smart roaming and 802.11r fast transition |
| Multicast Enhancement | Multicast-to-unicast conversion to reduce network congestion |
| Wireless Location | BLE and RSSI location in Fit AP mode |
| Mesh and Probing | Mesh links, Mesh security, multi-hop Mesh and wireless environment monitoring |
| Hotspot 2.0 | Supported in Fit AP mode |
| Authentication | 802.1X, MAC, Portal, guest/captive portal, MAC-triggered Portal, PSK, Private-PSK/PPSK and social login in Cloud AP mode |
| EAP Methods | EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, EAP-FAST, GTC and EAP-SIM |
| Wireless Security | WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWE, AES, TKIP and CCMP |
| Forwarding Security | Packet and MAC filtering, broadcast storm suppression, EAD integration, management frame protection, WIPS and IP Source Guard (IPSG) |
| Layer 2 and Layer 3 | Static/DHCP IP, DHCP server/client/relay, NAT/NAT66/logging, LLDP, IPv4/IPv6 ICMP, ACL, DHCP, TFTP, FTP and DNS |
| Service Assurance | Remote AP, Doctor AP, spectrum analysis, 802.11ax-only access, bandwidth guarantee, port aggregation, broadcast suppression, weak-signal client blocking, roaming optimization, RF tuning and software recovery |
| QoS | WMM, priority marking and mapping, SSID/VLAN-based QoS policies, Layer 2–4 filtering and classification, CAR, per-client and SSID bandwidth management, ATF and CAC |
| Power Saving | Green AP, U-APSD and Spatial Multiplexing Power Save |
| Management | Cloud AP web management via HTTP/HTTPS, SNMP v1/v2c/v3 in Fit AP mode, MIB-II and SNMP MIB, SSH v2, Telnet, FTP/TFTP, CLI, Syslog, secure boot and NETCONF |
| IEEE Standards | IEEE 802.11a/b/g/n/ac/AC Wave 2/ax, 802.11d/e/h/i/w/u, 802.11k/v/r, 802.3af/at/bt and 802.15.1 |
| Wi-Fi Certifications | Wi-Fi Alliance Wi-Fi 6, WMM, WPA/WPA2/WPA3 Enterprise and Personal (SAE), Enhanced Open (OWE) |
