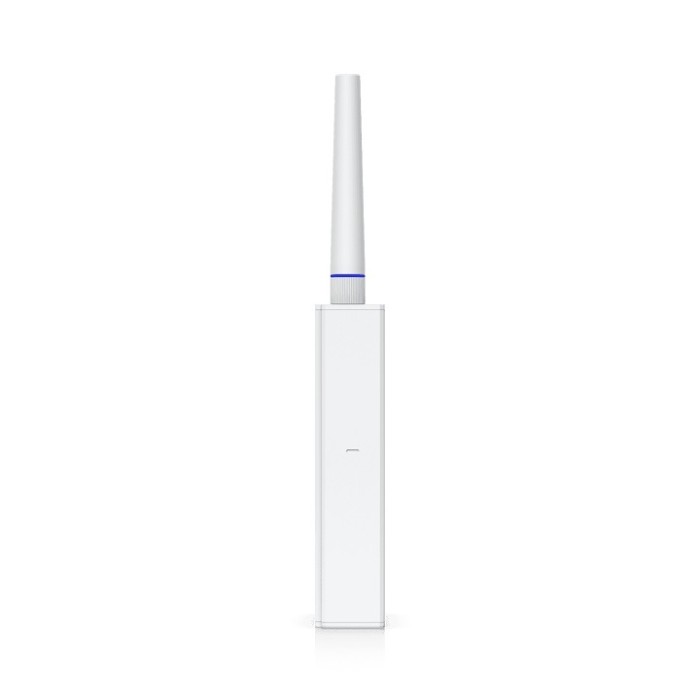

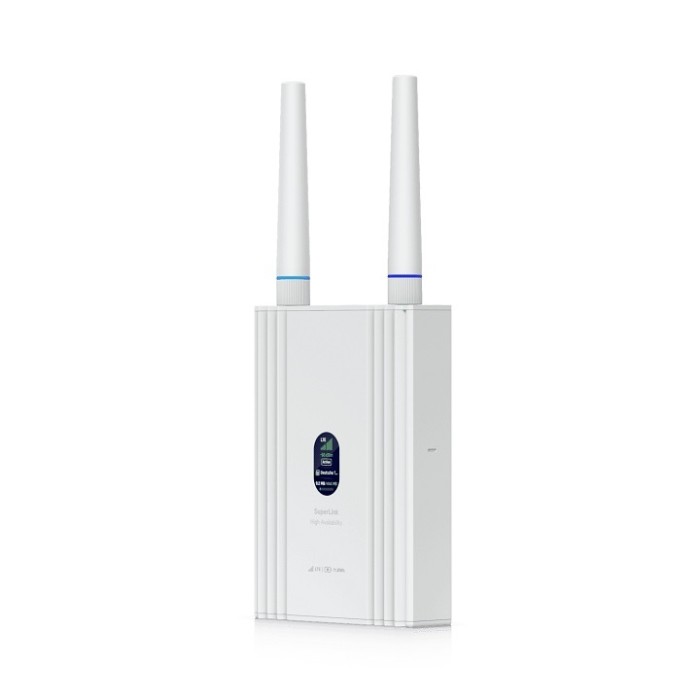

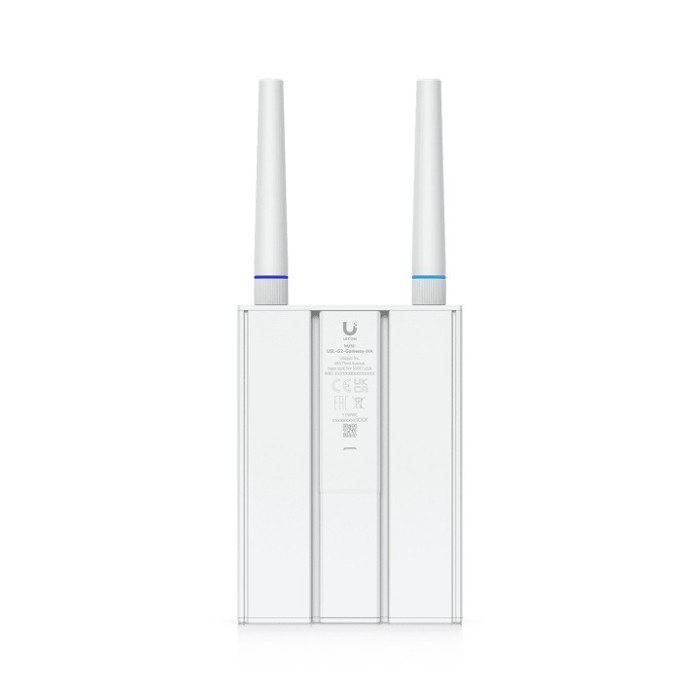

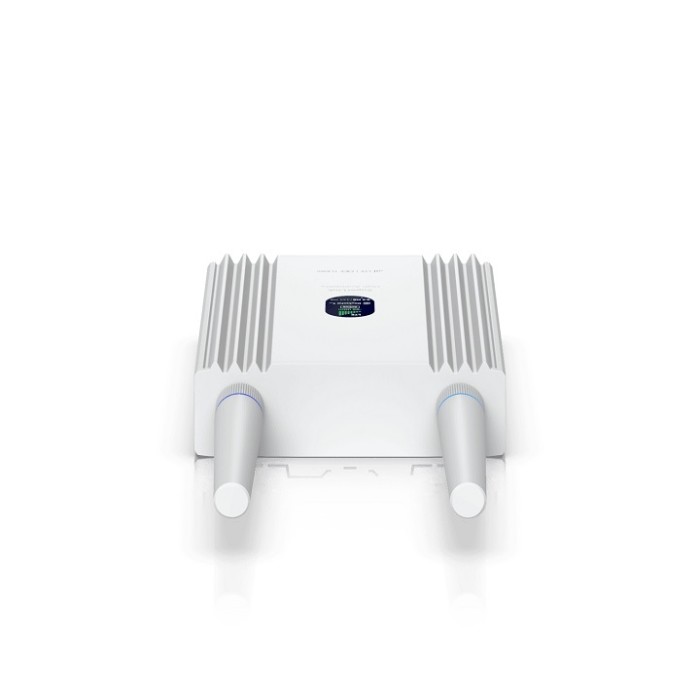

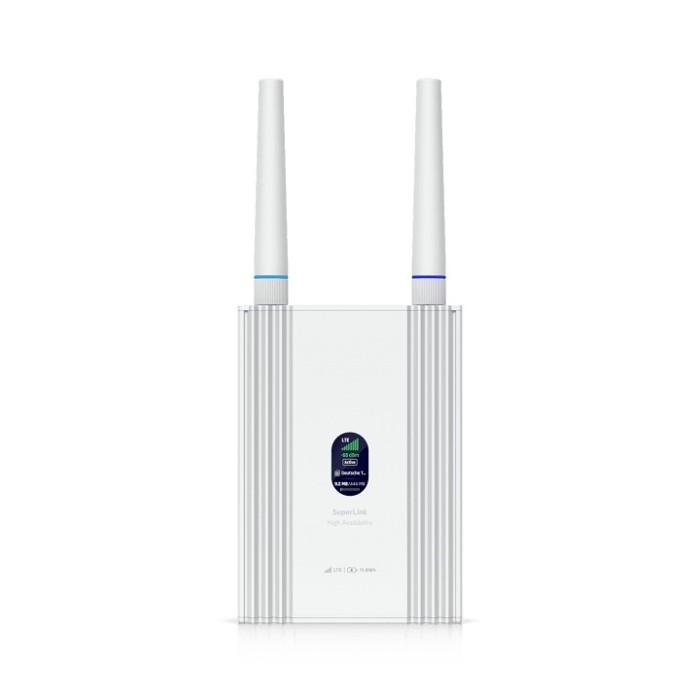

Ubiquiti USL-G2-Gateway-HA UniFi Protect SuperLink Gateway HA with LTE & Battery Backup
A SuperLink gateway and Thread border router designed for long-range SuperLink sensors and Thread devices, with LTE connectivity and built-in battery for power backup.
| Dimensions | With antenna: 206 x 85 x 25.6 mm (8.1 x 3.4 x 1") With DIN rail mount: 206 x 85 x 38.1 mm (8.1 x 3.4 x 1.5") With wall mount: 206 x 85 x 30.3 mm (8.1 x 3.4 x 1.2") |
| Mounting | Wall and DIN rail mount |
| UniFi Application Suite | Protect |
| Performance | |

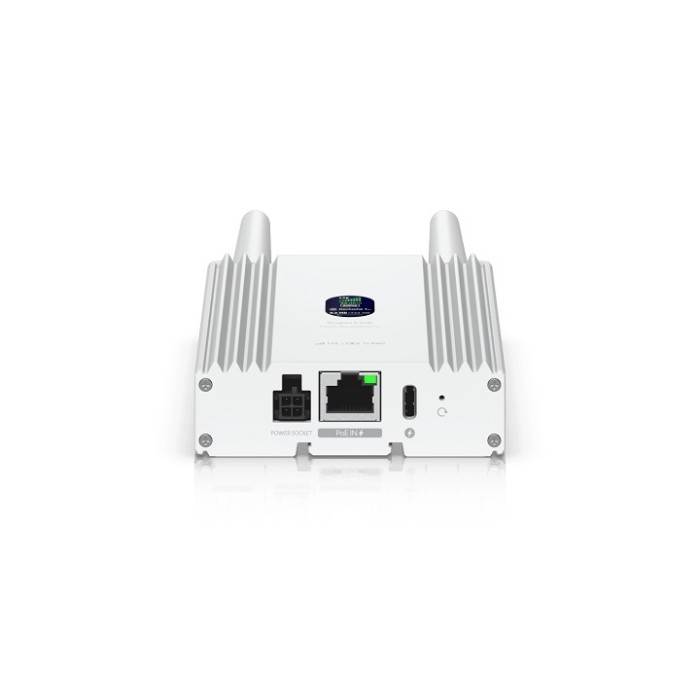

| Networking Interface | (1) 10/100 MbE RJ45 port |
| Connectivity | Thread (IEEE Standard 802.15.4) SuperLink (Proprietary) |
| Operating Frequency | Thread: 2400–2480 MHz SuperLink: US: 915.6–927.6 MHz EU: 865.1–869.5 MHz |
| Antenna Gain | Thread: 3 dBi SuperLink: 1 dBi |
| Max. TX Power | Thread: 10 dBm SuperLink: 27 dBm |
| Max. Range | Thread: Up to 100 m (328 ft) SuperLink: 2 km (1.2 mi) |
| Max. Client Count | Thread: 128 SuperLink: 96 |
| Hardware | |
| Max. Power Consumption | 6.5W |
| Power Method | PoE USB Type-C, 5V, 1A External DC in: 12V, 1A |
| Battery Life | 2.2 h |
| Weight | 380 g (13.4 oz) |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Polycarbonate |

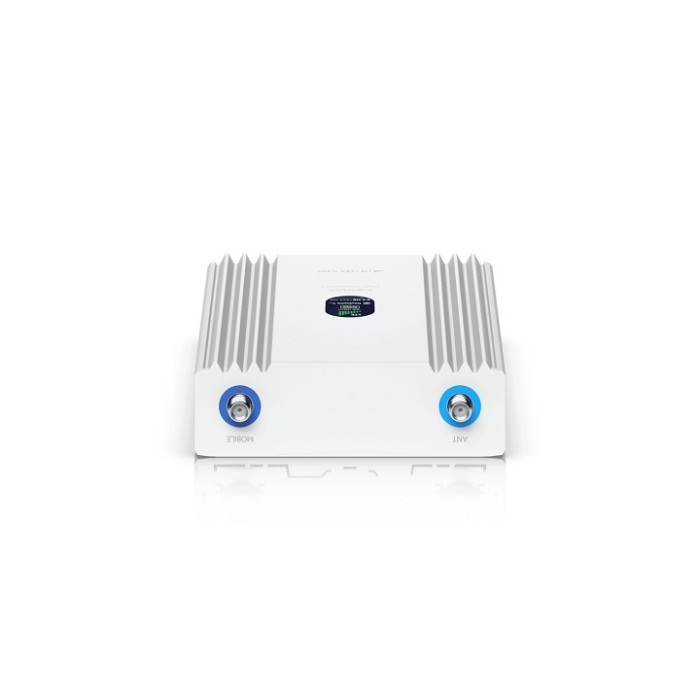

| Antenna Connector | (1) SuperLink: RP-SMA female (1) Mobile: SMA female |
| Buttons | (1) Factory reset |
| Display | 1.14" status display |
| Ambient Operating Temperature | 0 to 40 C (32 to 104 F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| NDAA Compliant | ✓ |
| Software | |
| Application Requirements | |
| Web Application | UniFi Protect |
| Mobile App | UniFi Protect iOS and Android |
