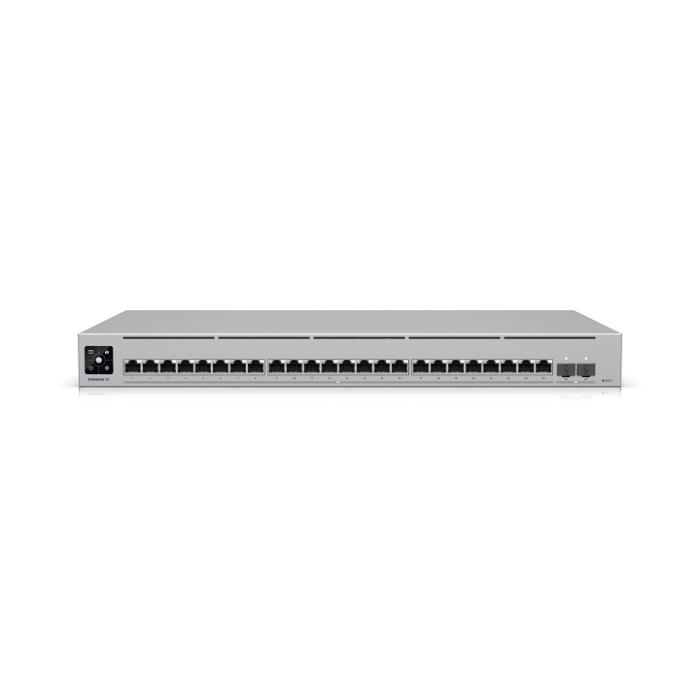

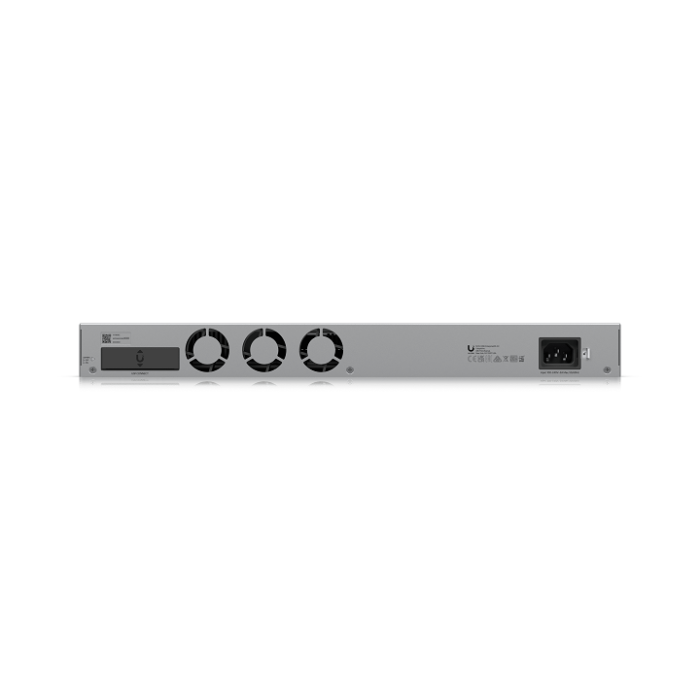

Ubiquiti USW-EnterpriseXG-24 EnterpriseXG 24 (Gen1) 24-port Layer 3 Switch
A 24-port, Layer 3 switch capable of supporting high-capacity 10 GbE RJ45 and 25G SFP28 connections.
Note. These switches are not compatible with the PoE++ requirements of the new E7 Access Points. We recommend using Enterprise Campus switches for such deployments.
| Hardware Specifications | |
|---|---|
| Dimensions | 442 x 285 x 44 mm (17.4 x 11.2 x 1.7") |
| Port Layout |
10 GbE RJ45: 24 (10G/5G/2.5G/1G/100M) 25G SFP28: 2 (25G/10G/1G) |
| Redundancy | DC Power Backup |
| Layer 3 | ✓ |
| Form Factor | Rack mount (1U) |
| Performance | |
| Switching Capacity | 580 Gbps |
| Total Non-Blocking Throughput | 290 Gbps |
| Forwarding Rate | 432 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| ARP Entries | 16,000 |
| IPv4 Routes | 16,000 |
| Packet Buffer Size | 4 MB |
| Access Lists | IPv4: 128 MAC: 128 |
| Layer 3 Features | |
| DHCP Server (Local Networks) | ✓ |
| DHCP Relay | ✓ |
| Inter-VLAN Routing (Local Networks) | ✓ |
| Static Routing (Local Networks) | ✓ |
| Layer 2 Features | |
| LACP Port Aggregation | ✓ |
| STP & RSTP | ✓ |
| QoS (DSCP) | ✓ |
| Pro AV Profiles | ✓ |
| Advanced IGMP Configuration | ✓ |
| IGMP Snooping | ✓ |
| 802.1X Control | ✓ |
| MAC-Based ACLs & Device Isolation | ✓ |
| DHCP Snooping & Guarding | ✓ |
| Egress Rate Limit | ✓ |
| Flow Control | ✓ |
| Storm Control | ✓ |
| Multicast & Broadcast Rate Limiting | ✓ |
| MAC Address Blocking | ✓ |
| IP-Based ACLs & Network Isolation | ✓ |
| MAC-Based Port Restriction | ✓ |
| Port Isolation | ✓ |
| Port Mirroring | ✓ |
| Jumbo Frames | ✓ |
| LLDP-MED | ✓ |
| Voice VLAN | ✓ |
| Loop Protection | ✓ |
| Hardware | |
| Max. Power Consumption | 100W |
| Power Method | (1) Universal input, 100—240V AC, 50/60 Hz (1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 100W |
| Supported Voltage Range | 100—240V AC |
| Management | Ethernet |
| Heat Dissipation | 341.2 BTU/hr |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 400~1200 mm (15.7–47.2") |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: + 16kV, contact: + 12kV |
| Ambient Operating Temperature | -5 to 40C (23 to 104F) |
| Ambient Operating Humidity | 10 to 95% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, Anatel |
| Software | |
| Application Requirements | UniFi Network Version 6.1.67 and later |
