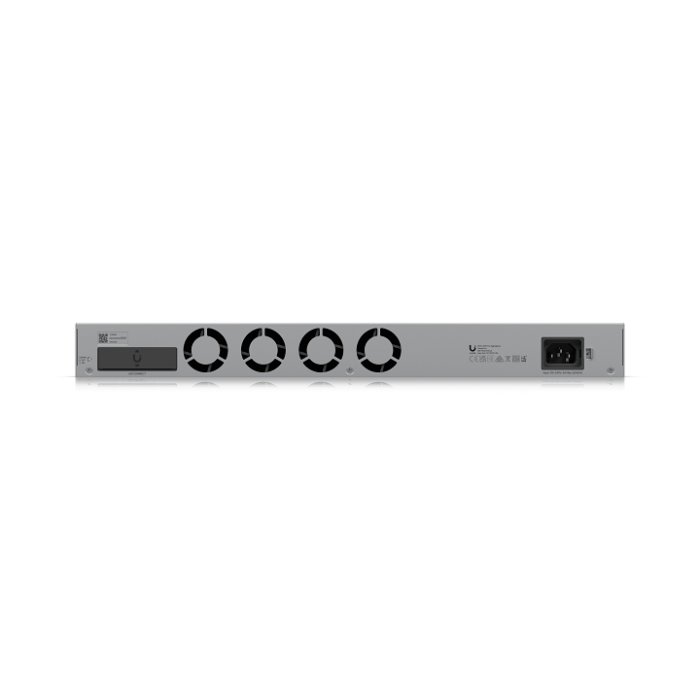

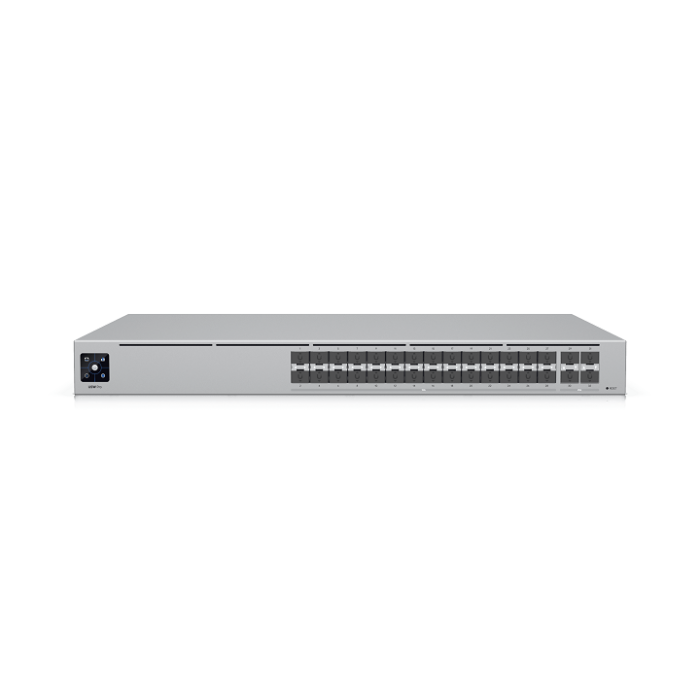

Ubiquiti USW-Pro-Aggregation-EU Hi-Capacity Aggregation 32-port Layer 3 Switch
A 32-port, Layer 3 switch made for high-capacity 10G SFP+ and 25G SFP28 connections.
| Dimensions | |
|---|---|
| Size | 442 x 325 x 44 mm (17.4 x 12.8 x 1.7") |
| Port Layout | |
| 10G SFP+ | 28 (10G/1G) |
| 25G SFP28 | 4 (25G/10G/1G) |
| Redundancy | DC Power Backup |
| Layer 3 | ✓ |
| Form Factor | Rack mount (1U) |
| Performance | |
| Switching Capacity | 760 Gbps |
| Total Non-Blocking Throughput | 380 Gbps |
| Forwarding Rate | 565 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| L3 Table Size | ARP Entries: 16,000 IPv4 Routes: 16,000 |
| Packet Buffer Size | 4 MB |
| Access Lists | IPv4: 128, MAC: 128 |
| Layer 3 Features | |
| DHCP Server (Local Networks) | ✓ |
| DHCP Relay | ✓ |
| Inter-VLAN Routing (Local Networks) | ✓ |
| Static Routing (Local Networks) | ✓ |
| Layer 2 Features | |
| LACP Port Aggregation | ✓ |
| STP & RSTP | ✓ |
| QoS (DSCP) | ✓ |
| Pro AV Profiles | ✓ (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) |
| Advanced IGMP Configuration | ✓ (Querier, Fast Leave, Router Port) |
| IGMP Snooping | ✓ |
| 802.1X Control | ✓ |
| MAC-Based ACLs & Device Isolation | ✓ |
| DHCP Snooping & Guarding | ✓ |
| Egress Rate Limit | ✓ |
| Flow Control | ✓ |
| Storm Control | ✓ |
| Multicast & Broadcast Rate Limiting | ✓ |
| MAC Address Blocking | ✓ |
| IP-Based ACLs & Network Isolation | ✓ |
| MAC-Based Port Restriction | ✓ |
| Port Isolation | ✓ |
| Port Mirroring | ✓ |
| Jumbo Frames | ✓ |
| LLDP-MED | ✓ |
| Voice VLAN | ✓ |
| Loop Protection | ✓ |
| Hardware | |
| Max. Power Consumption | 100W |
| Power Method | (1) Universal input, 100—240V AC, 50/60 Hz, (1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 100W |
| Supported Voltage Range | 100—240V AC |
| Management | Ethernet, AR |
| Heat Dissipation (Excluding PoE Output) | 341.2 BTU/hr |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 400–1200 mm (15.7–47.2") |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: + 16kV, Contact: + 12kV |
| Ambient Operating Temperature | -5 to 40C (23 to 104F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, Anatel |
| Software | |
| Application Requirements | UniFi Network Version 6.1.25 and later |
