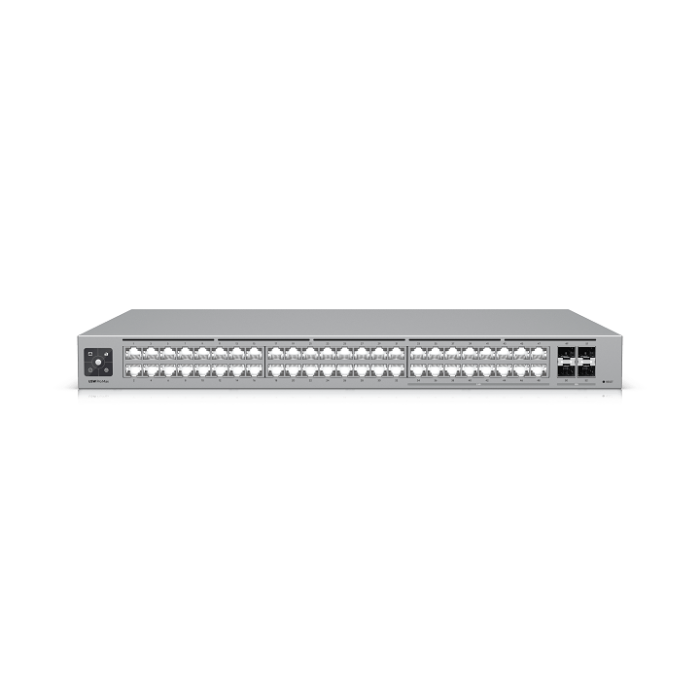

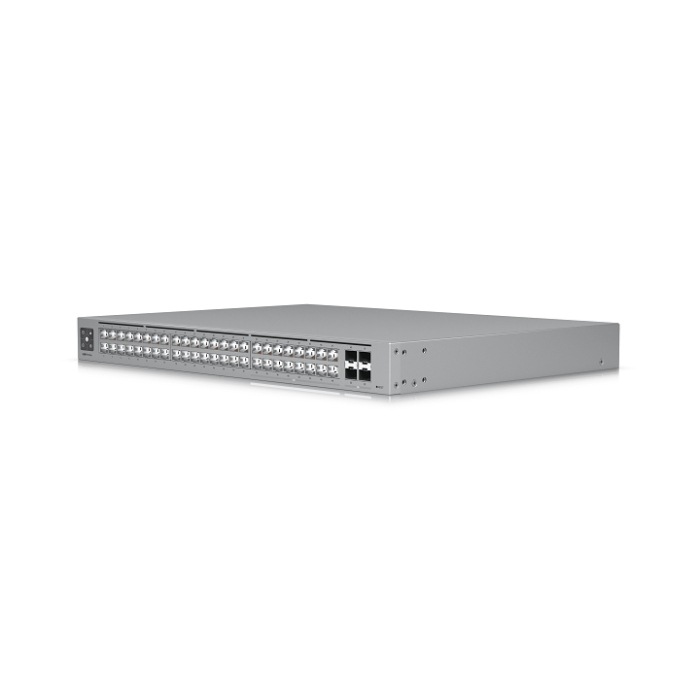

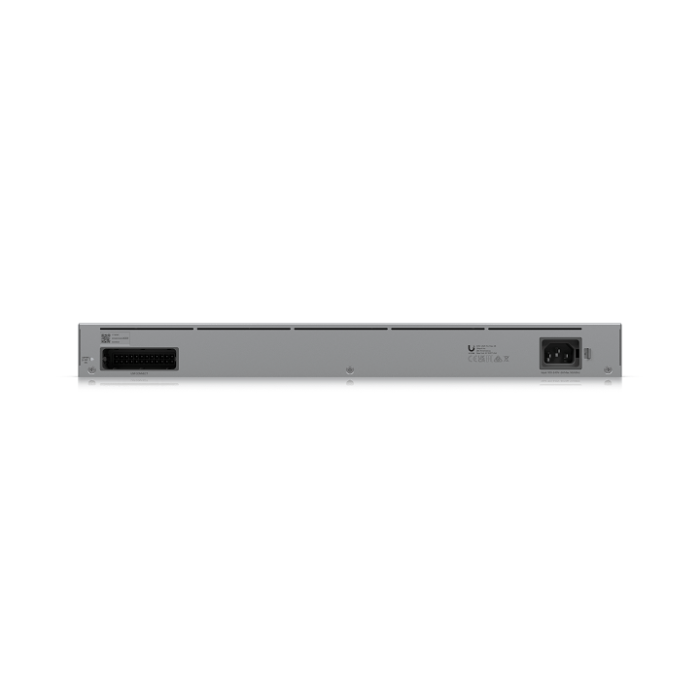

Ubiquiti Pro Max 48 48-port Layer 3 Etherlighting Switch- USW-Pro-Max-48-EU
A 48-port, Layer 3 Etherlighting™ switch with 2.5 GbE.
| Device Specifications | |
|---|---|
| Physical | |
| Dimensions | 442 x 325 x 44 mm (17.4 x 12.8 x 1.7") |
| Form Factor | Rack mount (1U) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 400–1200 mm (15.7–47.2") |
| LCM Display | 1.3" touchscreen |
| Ports & Connectivity | |
| 1 GbE RJ45 | 32 (1G / 100M / 10M) |
| 2.5 GbE RJ45 | 16 (2.5G / 1G / 100M / 10M) |
| 10G SFP+ | 4 (10G / 1G) |
| Redundancy | DC Power Backup |
| Layer 3 | Yes |
| Etherlighting™ | Ethernet ✓, SFP+ ✓ |
| Performance | |
| Switching Capacity | 224 Gbps |
| Total Non-Blocking Throughput | 112 Gbps |
| Forwarding Rate | 167 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| L3 Table Size – ARP Entries | 12,000 |
| L3 Table Size – IPv4 Routes | 12,000 |
| Packet Buffer Size | 2 MB |
| Access Lists |
IPv4: 128 MAC: 128 |
| Layer 3 Features | |
| DHCP Server (Local Networks) | Yes |
| DHCP Relay | Yes |
| Inter-VLAN Routing (Local Networks) | Yes |
| Static Routing (Local Networks) | Yes |
| Layer 2 Features | |
| LACP Port Aggregation | Yes |
| STP & RSTP | Yes |
| QoS (DSCP) | Yes |
| Pro AV Profiles | Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron |
| Advanced IGMP Configuration | Querier, Fast Leave, Router Port |
| IGMP Snooping | Yes |
| 802.1X Control | Yes |
| MAC-Based ACLs & Device Isolation | Yes |
| DHCP Snooping & Guarding | Yes |
| Egress Rate Limit | Yes |
| Flow Control | Yes |
| Storm Control | Yes |
| Multicast & Broadcast Rate Limiting | Yes |
| MAC Address Blocking | Yes |
| IP-Based ACLs & Network Isolation | Yes |
| MAC-Based Port Restriction | Yes |
| Port Isolation | Yes |
| Port Mirroring | Yes |
| Jumbo Frames | Yes |
| LLDP-MED | Yes |
| Voice VLAN | Yes |
| Loop Protection | Yes |
| Hardware | |
| Max. Power Consumption | 100W |
| Power Method |
(1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 100W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet, AR |
| Heat Dissipation | 341.2 BTU/hr |
| Environmental | |
| Operating Temperature | -5 to 40C (23 to 104F) |
| Operating Humidity | 10 to 90% noncondensing |
| Compliance | |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Anatel: 06373-24-08356 |
| Software | |
| Application Requirements | UniFi Network version 8.0.24 or later |
