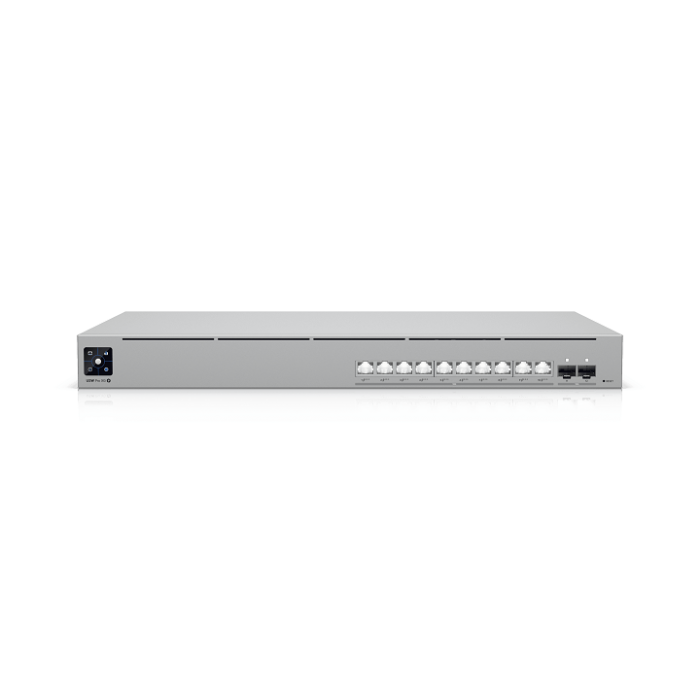

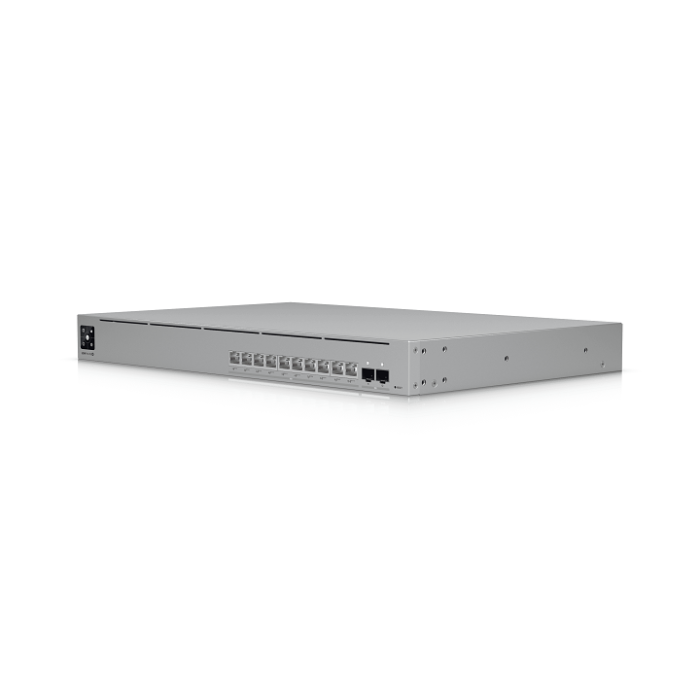

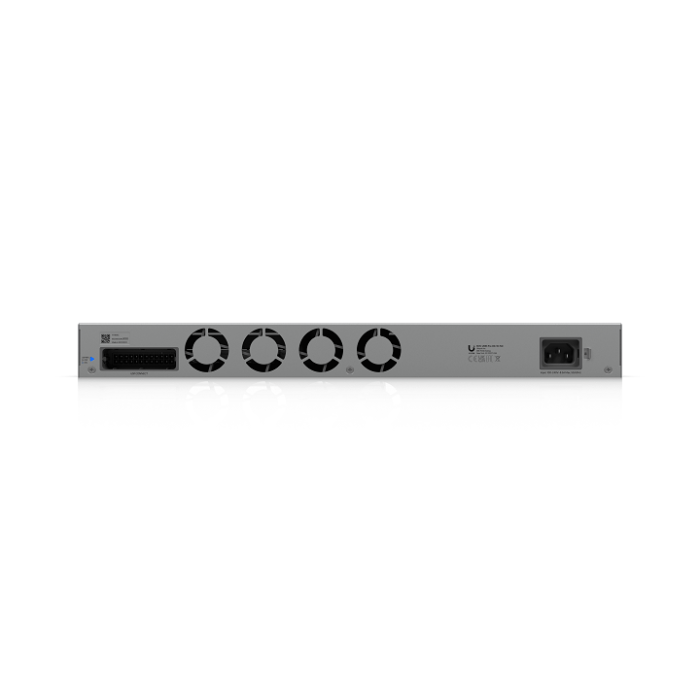

Ubiquiti Pro XG 10 PoE 10-port Layer 3 Etherlighting PoE+++ Switch - USW-Pro-XG-10-PoE
1U, professional-grade 10-port, Layer 3 Etherlighting™ PoE+++ switch with (10) 10 GbE and (2) 10G SFP+ ports.
| Device Specifications | |
|---|---|
| Physical | |
| Dimensions | 442.4 x 285 x 44 mm (17.4 x 11.2 x 1.7") |
| Form Factor | Rack mount (1U) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 400–1200 mm (15.7–47.2") |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: +30kV, Contact: +30kV |
| Ports & Connectivity | |
| 10 GbE RJ45 | 10 (All PoE+++) (10G / 5G / 2.5G / 1G / 100M) |
| 10G SFP+ | 2 (10G / 1G) |
| Max. PoE Output | Up to PoE+++ |
| Total PoE Availability | 400W |
| Redundancy | DC Power Backup |
| Layer 3 | Yes |
| Etherlighting™ | Ethernet ✓, SFP+ ✓, LEDs: RPS ✓, System ✓ |
| Performance | |
| Switching Capacity | 240 Gbps |
| Total Non-Blocking Throughput | 120 Gbps |
| Forwarding Rate | 179 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| L3 Table Size – ARP Entries | 12,000 |
| L3 Table Size – IPv4 Routes | 12,000 |
| Packet Buffer Size | 2 MB |
| Access Lists |
IPv4: 128 MAC: 128 |
| Layer 3 Features | |
| DHCP Server (Local Networks) | Yes |
| DHCP Relay | Yes |
| Inter-VLAN Routing | Yes |
| Static Routing | Yes |
| Layer 2 Features | |
| LACP Port Aggregation | Yes |
| STP & RSTP | Yes |
| QoS (DSCP) | Yes |
| Pro AV Profiles | Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron |
| Advanced IGMP Configuration | Querier, Fast Leave, Router Port |
| IGMP Snooping | Yes |
| 802.1X Control | Yes |
| MAC-Based ACLs & Device Isolation | Yes |
| DHCP Snooping & Guarding | Yes |
| Egress Rate Limit | Yes |
| Flow Control | Yes |
| Storm Control | Yes |
| Multicast & Broadcast Rate Limiting | Yes |
| MAC Address Blocking | Yes |
| IP-Based ACLs & Network Isolation | Yes |
| MAC-Based Port Restriction | Yes |
| Port Isolation | Yes |
| Port Mirroring | Yes |
| Jumbo Frames | Yes |
| LLDP-MED | Yes |
| Voice VLAN | Yes |
| Loop Protection | Yes |
| Hardware | |
| PoE Ports | PoE+++: 10 |
| Max. PoE Wattage per Port by PSE |
PoE: 15.4W PoE+: 30W PoE++: 60W PoE+++: 90W |
| Max. Power Consumption | 65W (Excl. PoE), 520W (Incl. PoE) |
| Power Method |
(1) Universal input 100–240V AC, 50/60 Hz (1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 550W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet, AR |
| Environmental | |
| Operating Temperature | -5 to 40C (23 to 104F) |
| Operating Humidity | 10 to 90% noncondensing |
| Compliance | |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Anatel: 05660-25-08356 |
| Software | |
| Application Requirements | UniFi Network version 9.1.120 or later |
