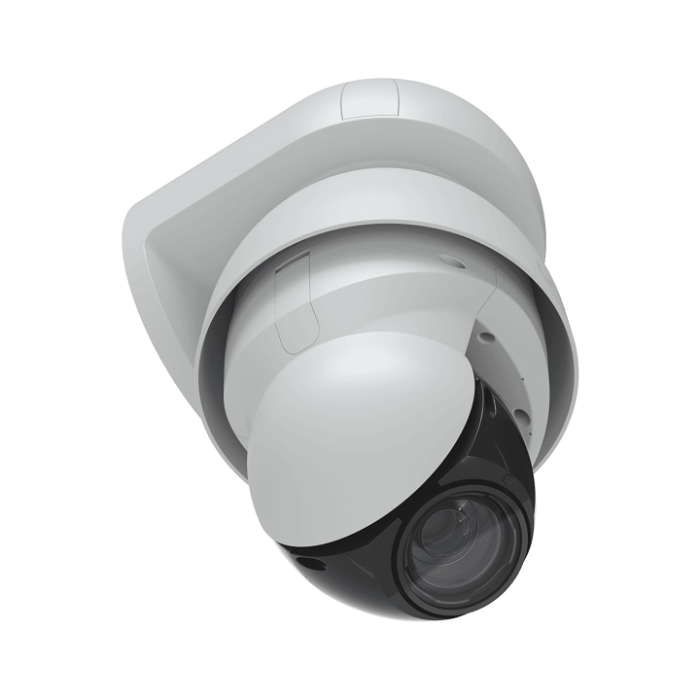

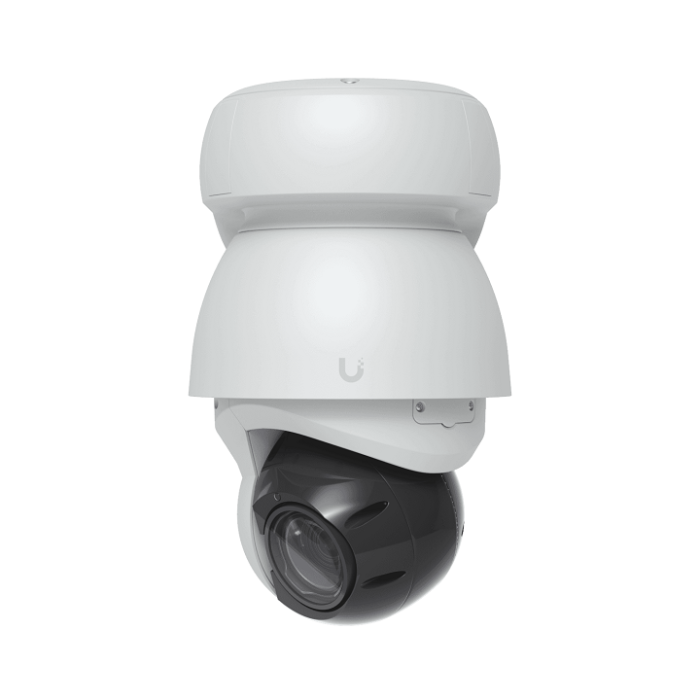

Ubiquiti AI PTZ Industrial 4K PoE++ PTZ Camera - UVC-AI-PTZ-W - White
Industrial-grade 4K PoE++ PTZ camera with enhanced AI capabilities, 22x optical zoom, and long-range adaptive IR LED night vision.
| UniFi 4K PTZ Camera Specifications | |
|---|---|
| Physical | |
| Dimensions | 207 x 223.7 x 341.3 mm (8.2 x 8.8 x 13.4") |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Mount Material | Powder-coated aluminum alloy |
| Weatherproofing | IP66 |
| AI Features | |
| Face Recognition | Yes |
| License Plate Recognition | Yes |
| Smart Detections | People, Vehicles, Animals |
| Video & Imaging | |
| Resolution | 4K |
| Max Frame Rate | 30 FPS |
| Output Resolution | 8MP (3840 x 2160, 16:9) |
| Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| Optics | |
| Image Sensor | 1/1.8" 8MP |
| Lens | F 6.36–138.5 mm; ƒ/1.5–ƒ/3.4 |
| Optical Zoom | 22× |
| Field of View |
Wide: H 59.8, V 44.4, D 70 Tele: H 3, V 2.24, D 3.76 |
| Pan / Tilt | |
| Pan Range | 360 (endless) |
| Tilt Range | 120 |
| Night Vision | |
| IR Night Vision | Up to 100 m (328 ft) |
| Night Mode | Built-in IR LED illumination and IR cut filter |
| Networking & Power | |
| Networking Interface | GbE RJ45 port |
| Power Method | PoE++ |
| Supported Voltage Range | 42.5–57 V DC |
| Max Power Consumption | 51 W |
| Hardware | |
| Processor | Quad-core Arm Cortex-A53 |
| Expansion Slot | MicroSD card |
| Button | Factory reset (1) |
| Mounting | |
| Mounting Options | Wall, pole mount, desk stand (included) |
| Environment | |
| Operating Temperature | -40 to 50C (-40 to 122F) |
| Operating Humidity | 0–90% non-condensing |
| Software & Compliance | |
| Application | UniFi Protect |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
