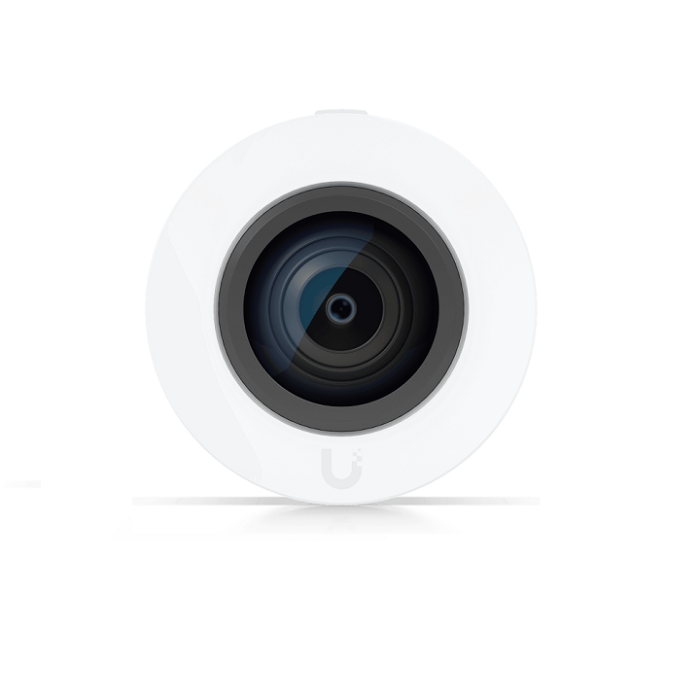

Ubiquiti AI Theta 360 Lens - UVC-AI-Theta-Lens-360
Ultra-wide 360 view lens that connects to an AI Theta Hub.
#1: 4K (9MP) resolution with ultra-wide 360 view
#2: Ideal for panoramic coverage of large, busy spaces such as entrances, lobbies, and retail floors
#3: Includes Standard Flush Mount for flat ceiling or wall mounting
| UVC-AI-Theta Lens-360 Specifications | |
|---|---|
| Mechanical | |
| Dimensions | 22.8 × 43.5 mm (0.9 × 1.7") |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Mount Material | Polycarbonate |
| Weatherproofing | Indoor use only |
| Optics | |
| Image Sensor | 12MP CMOS |
| Lens | Fixed focal length |
| View Angle | H: 180, V: 180, D: 180 |
| Video | |
| Video Compression | H.264 |
| Resolution | 4MP (2560 x 2560, 1:1) |
| Max Frame Rate | 20 FPS |
| Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| System | |
| Power Method | Theta proprietary |
| Power Supply | 5 V DC, 0.5 A |
| Max Power Consumption | 2.5 W |
| Mounting | |
| Mounting Options | Wall, ceiling mount (included) |
| Optional Accessories | Angle mount (sold separately) |
| Environment | |
| Operating Temperature | 0 to 40C (32 to 104F) |
| Operating Humidity | 10–90% non-condensing |
| Compliance | |
| Certifications | FCC, IC, CE |
