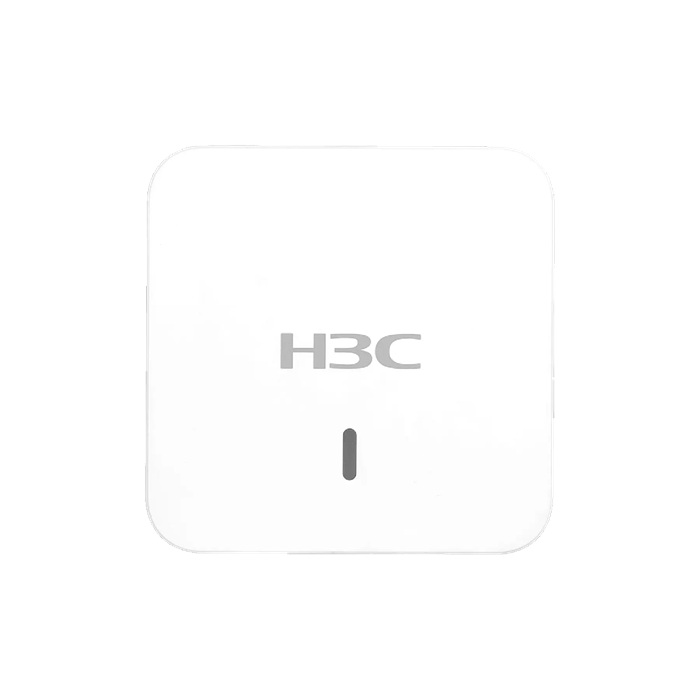

H3C WA6320-SI-H20 Best price in Dubai UAE
Supports CloudAP, FitAP, and AnchorAP modes for flexible deployment.
Enables unified network management through Cloudnet and AD-Campus.
Uses Wi-Fi 6 OFDMA and MU-MIMO for efficient, low-latency connectivity.
Improves network capacity with BSS Coloring and TWT.
Provides WPA2/WPA3 security, rogue device monitoring, and DTLS encryption.
Optimizes wireless performance with intelligent RF management and fault diagnosis.
H3C WA6320-SI-H20 Buy with Best Price from authorized supplier for H3Cproducts in UAE H3C WA6320-SI-H20 Wi-Fi 6 Dual-Radio Access Point Distributor for Africa dsrtech.ae, H3C Dubai
| Weight | 250 g |
| Dimensions (W × D × H) | 136 mm × 136 mm × 36 mm (without mounting brackets) |

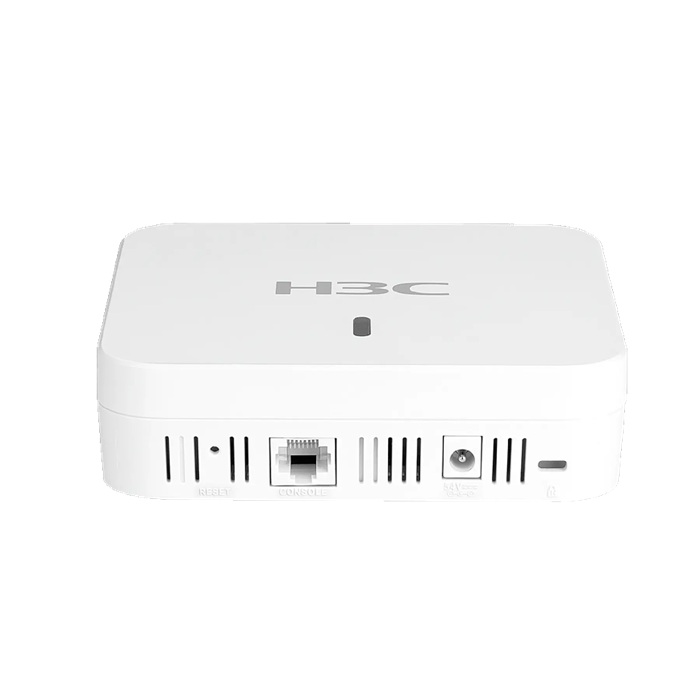

| Ethernet Interface | 1 × 100/1000M RJ-45 PoE input |
| Console Port | 1 × RJ-45 management console port |
| PoE Input | IEEE 802.3af; compatible with 802.3af/at PoE switches |
| Local Power Supply | 54V DC, center-positive circular plug; adapter sold separately |
| Antenna Type | Built-in omnidirectional antenna |
| Antenna Gain | 5 GHz: 5 dBi peak; 2.4 GHz: 3 dBi peak |
| Frequency Bands | 2.400–2.4835 GHz ISM; 5.150–5.250 GHz U-NII-1; 5.250–5.350 GHz U-NII-2A; 5.470–5.725 GHz U-NII-2C; 5.725–5.850 GHz U-NII-3/ISM |
| Modulation Technology | 802.11b: DSSS; 802.11a/g/n/ac: OFDM; 802.11ax: OFDMA |
| Modulation Modes | 802.11b: BPSK, QPSK, CCK; 802.11a/g/n: BPSK, QPSK, 16QAM, 64QAM; 802.11ac: up to 256QAM; 802.11ax: up to 1024QAM |
| Data Rates | 802.11b: 1–11 Mbps; 802.11a/g: 6–54 Mbps; 802.11n: 6.5–600 Mbps; 802.11ac: 6.5–6,933 Mbps; 802.11ax: 7.3–9,608 Mbps |
| Maximum Transmit Power | 5 GHz: 23 dBm; 2.4 GHz: 23 dBm, excluding antenna gain |
| Adjustable Power Granularity | 1 dBm increments |
| Reset Button | Factory reset and Cloud AP/Fit AP mode control |
| Security Slot | Kensington security slot |

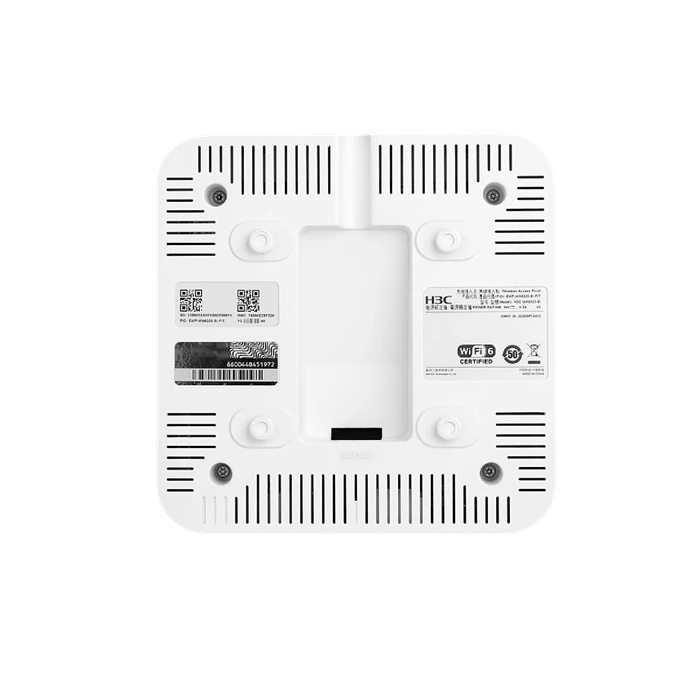

| Installation | Wall or ceiling mounting; mounting bracket preinstalled |
| LED Indicators | Yellow, green and blue status LEDs |
| Operating Temperature | 0°C to +45°C |
| Storage Temperature | −40°C to +70°C |
| Humidity | 5%–95%, non-condensing (operating and storage) |
| Protection Class | IP41 |
| Surge Protection | 4 kV common-mode |
| Power Consumption | 11.88 W |
| Safety Standards | IEC/EN 62368-1, GB 4943.1, SRRC |
| EMC Standards | EN 301 489-1/-3/-17, EN 60601-1-2, EN 55032/55035, CISPR 32/35, AS/NZS CISPR 32, ICES-003 Issue 7, GB/T 9254.1/.2, GB 17625.1/.2, IEC/EN 61000-4-2/-3/-4/-5/-6/-8/-11 and IEC/EN 61000-3-2/-3-3 |
| Radio Standards | ETSI EN 300 328, EN 301 893, EN 300 440, FCC Part 15E |
| RoHS Standards | EN IEC 63000:2018 |
| Health Standards | EN 50385:2017, EN IEC 62311:2020 |
| MTBF (25°C) | 5,719,255 hours |
