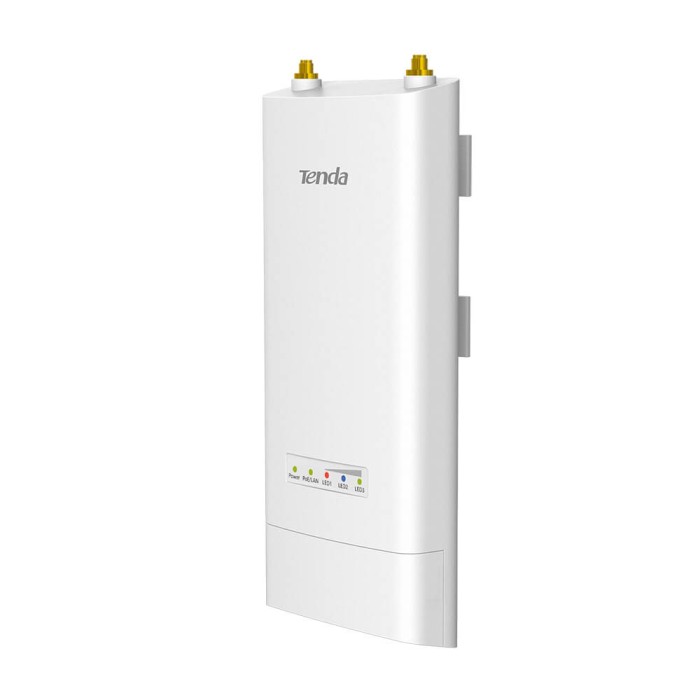

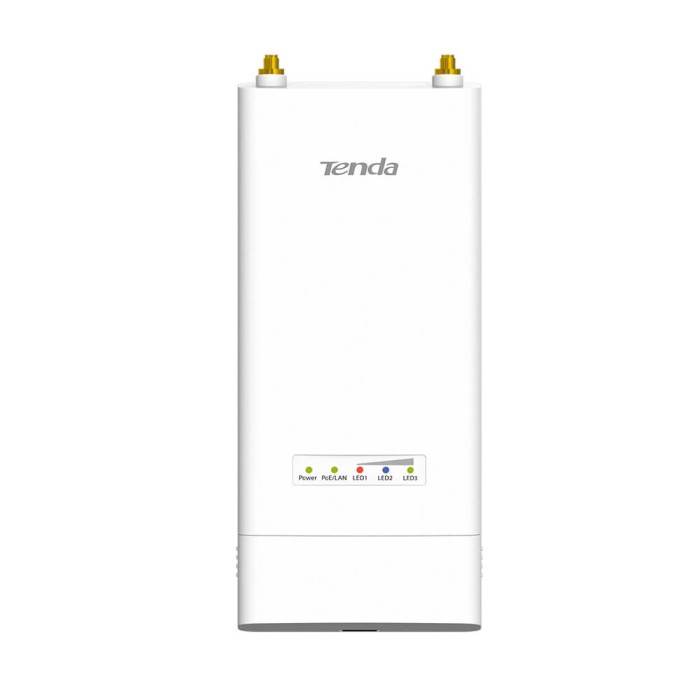

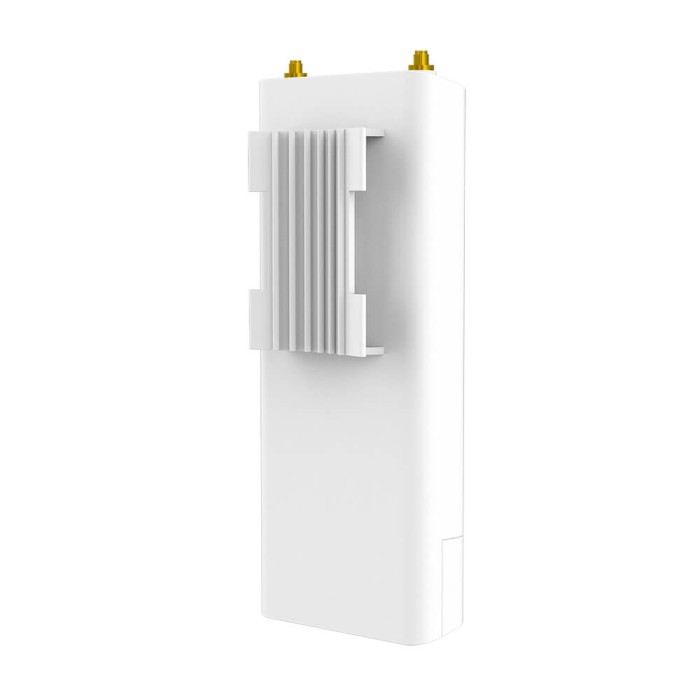

Tenda B9 5GHz 11AC 867Mbps Outdoor Basestation
- AP,Station,WISP operating mode supported
- 6000V Lightning Protection
- IP65 waterproof enclosure
- 2 RP-SMA Connector
- 5GHz 11ac 867Mbps
Product Information
Model
B9
Dimension
194.7x83x42.1mm(LxWxH)
Deployment
Pole Mount
Application Scenarios
PtP, PtMP for rural wireless connectivity and CCTV surveillance
Hardware
Frequency Range
5GHz
Compliant Standards
IEEE 802.11a/n/ac
Maximum Wireless Rate
867Mbps
Interfaces
1x10/100/1000Mbps Ethernet Port
Antenna
2xRP-SMA Connector
GND
1
Reset Button
1
Power Consumption
8.5W
Waterproof Level
IP65
LED Indicator
PoE/LAN,LED1,LED2,LED3
Power Method
24V0.5A Passive PoE
Lightning Protection
6000V
Passive PoE
Passive power over ethenet via PoE/LAN ( +4,5pins,-7,8pins)
Voltage range: 21-25V DC
Reception Sensitivity
MCS0: -96dbm
MCS7: -72dbm
Software
TDMA
Support（TD-MAX technology）
Operating mode
AP/Station/WISP/P2MP/WDS Repeater/Router
Enable/Disable Wireless Radio
Support
SSID Hidden
Support
Wireless Client isolation
Support
SSID Isolation
Support
Channel Bandwidth
20/40/80MHz
Channel Shift
Support
Wireless Access Control
Support
Weak Signal Client Limitation
Support
Transmission Power
Maximum 400mW(26dBm)
Adjustable power by 1dBm
WMM Capable
Support
APSD Capable
Support
Wireless Security
64/128 WEP,WPA-PSK,WPA2-PSK,WPA
Transparent Bridge
Support
VLAN Tagging for SSID
Support
DHCP Server
Support
VPN Pass-Through
Support
Remote Web access
Support
Schedule Reboot
Support
Page Timeout
Support
Ping Watchdog
Support
Dyndns
noip, dyndns.org
Network Diagnoses
Ping, Traceroute, Signal Scan
Time&Date Setting
Support
Firmware upgrade
Support
Backup/Restore Configuration
Support
Username Managerment
Support
System Logs
Support
Managed By Controller
PC Software -- CPE Assistant
Others
Package Contents
1x5GHz 11AC 867Mbps Gigabit Outdoor Basestation
1xPassive PoE Power Adapter
1xPower Cord
1xQuick Installation Guide
Operation Temperature
-30C - 60C
Storage Temperature
-40C - 70C
Operating Humidity
10%-90% non-condensing
Storage Humidity
10%-90% non-condensing
Default login IP
192.168.2.1
Default Login Username
admin
Default Login Password
admin
Certification
FCC/CE/RoHS
