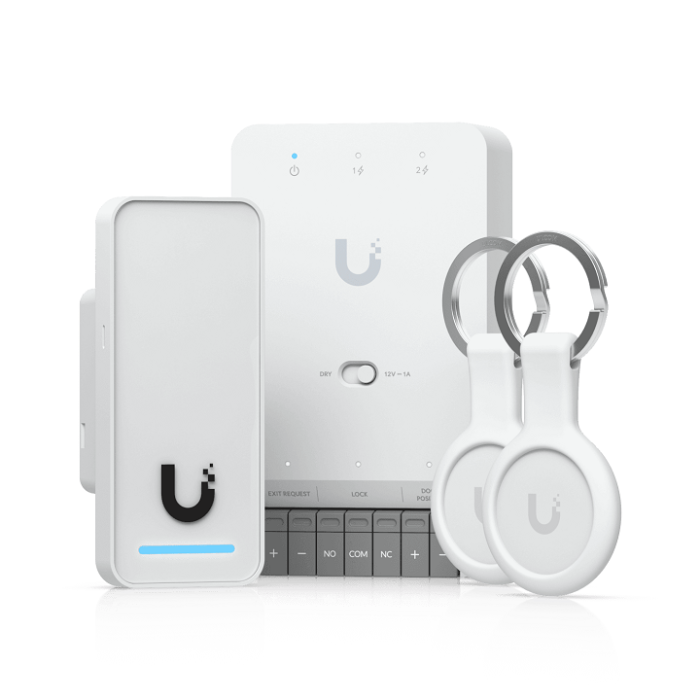

Ubiquiti G3 Starter Kit All-In-One Kit For UniFi Access - UA-G3-SK
A simple, all-in-one kit for UniFi Access, designed to manage a single door with one reader. Supports seamless setup and Touch Pass for modern, secure access control.
| In the Box | |
|---|---|
| Door Hub Mini | 1 |
| G3 Reader | 1 |
| Pocket Keyfobs | 2 |
| Touch Pass | 10 free 1-year Touch Passes included |

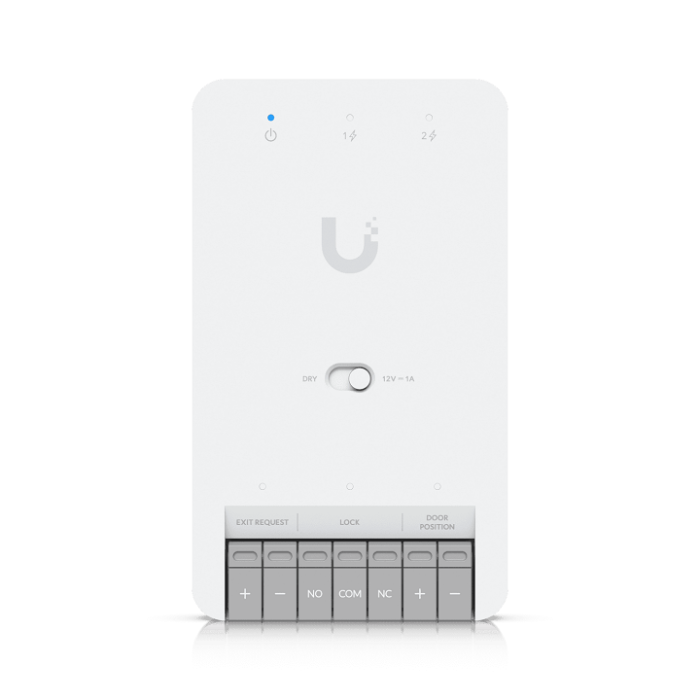

| Door Hub Mini Specifications | |
| Dimensions | 113 x 66 x 27.6 mm (4.4 x 2.6 x 1.1 in) |
| Supported Doors | 1 |
| Maximum User Count | 3,000 |
| Input Terminals | Door exit request, door position |
| Power Method | PoE++ |
| Networking Interface | 3x GbE RJ45 |
| PoE Interface | 1x PoE++ input, 2× PoE outputs (30W per port, 45W max) |
| Max Power Consumption | 19W (without PoE output), 50W (with PoE output) |
| Digital Inputs | Request to exit, door position sensor |
| Dry Output Relay | 30V DC, 1A |
| Wet Output Relay | 12V DC, 1A |
| Mounting | DIN-rail (included) |
| Enclosure Material | Polycarbonate, metal |
| Operating Temperature | 0 to 40 C (32 to 104 F) |
| Operating Humidity | 5–90% non-condensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |

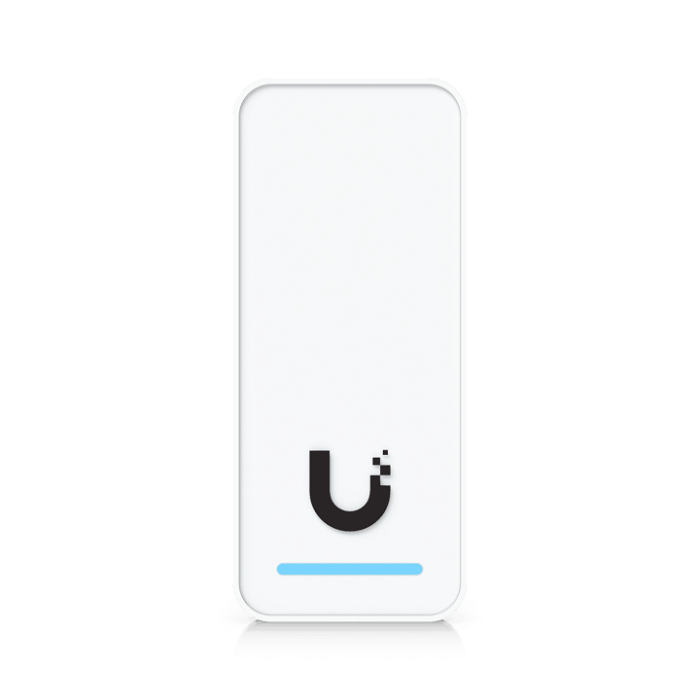

| G3 Reader Specifications | |
| Dimensions | 93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4 in) |
| Access Methods | NFC Card, Keyfob, Mobile Unlock, Apple/Google Wallet |
| Handwave Request to Exit | Yes |
| Weatherproof Rating | IP55 |
| Connectivity | NFC, BLE 4.1 |
| Power Method | PoE (48V DC) |
| Max Power Consumption | 5W |
| Speaker | 0.7W |
| Sensors | Proximity sensor |
| NFC Read Range | < 30 mm |
| NFC Frequency | 13.56 MHz |
| NFC Technology | MIFARE Classic, MIFARE DESFire, Sony FeliCa (ID only) |
| ECP Support | ECP 2.0 |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |

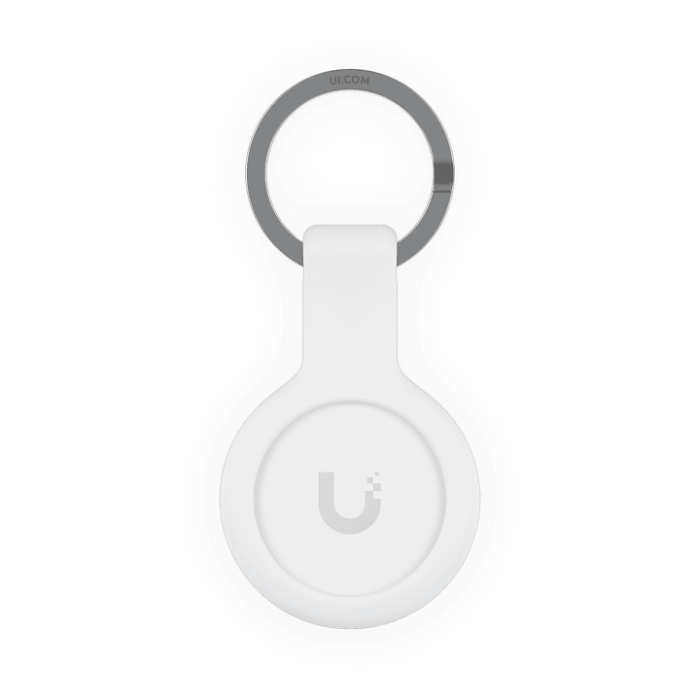

| Pocket Keyfob Specifications | |
| Dimensions | 84 x 39 x 7.4 mm (3.3 x 1.5 x 0.29 in) |
| Weatherproof Rating | IP54 |
| NFC Frequency | 13.56 MHz |
| NFC Technology | MIFARE DESFire EV3 4K |
| Security Protocol | UniFi Access Proprietary |
| Operating Temperature | -10 to 45 C (14 to 113 F) |
| NDAA Compliant | Yes |
| Certification | CE |
