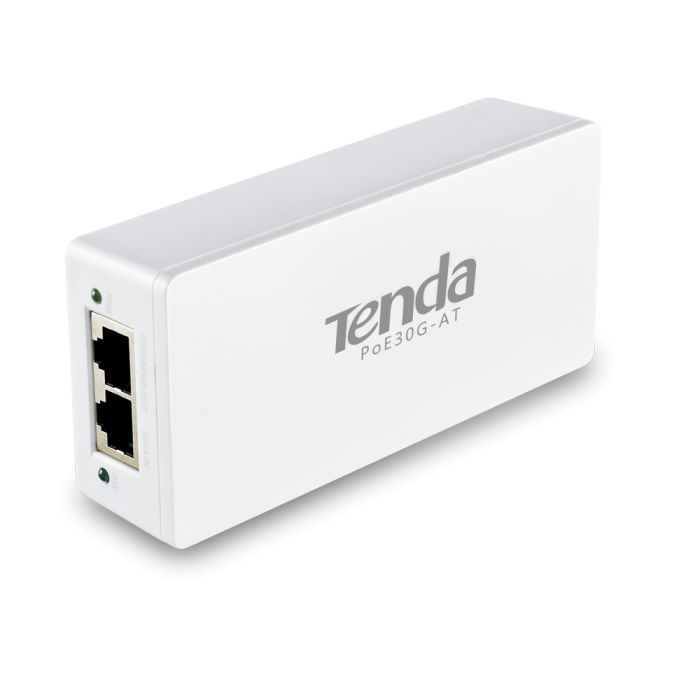

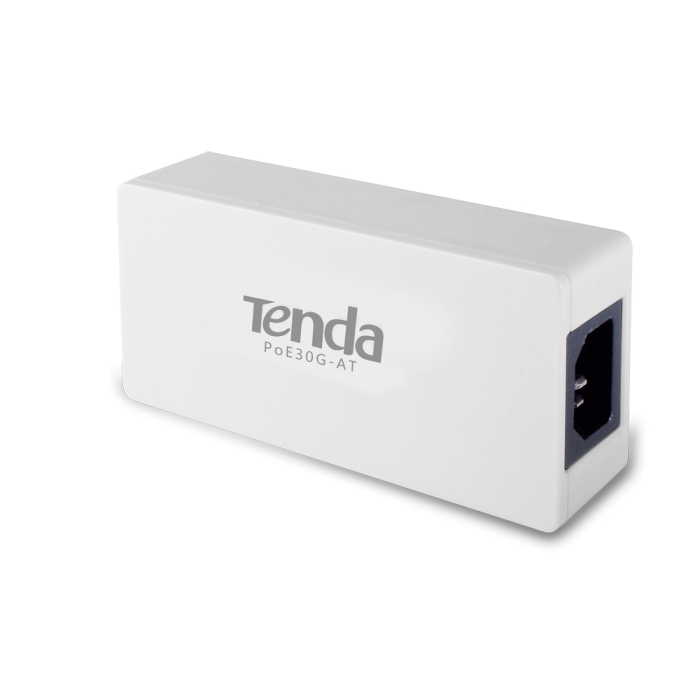

Tenda PoE30G-AT PoE Injector delivers up to 30W output power per port
- Plug and Play, no configuration required
- PoE Port Delivers power up to 100 meters
- Two RJ - 45 port, support 10/100/1000 Mbps link rate
- Power consumption one port up to 30W
Hardware
Network standards
IEEE802.3、 IEEE802.3u 、IEEE802.3ab、IEEE802.3af、 IEEE802.3at
LED Indicator
PWR, PoE
Interfaces
1x10/100/1000 Base-T Ethernet Port(Data/PoE)
1x10/100/1000 Base-T Ethernet Port(Data)
Transmission media
Recommended: CAT5/5e UTP or better
Dimension
132.3mmx60mmx33mm
Level of protection
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV
Forwarding mode
Store-and-forward
Transmission Rate
1000Mbps
PoE budget
Single port: AF: 15.4W, AT: 30W
Whole device: 30W
Power consumption
30W
Input voltage
100－240V AC 50/60Hz
51V/0.8A DC（Power Adapter Output）
Mounting
Desktop mounting: support
Environment
Operating Temperature: 0C-45C
Storage Temperature: -40C-70C
Operating Humidity: 10%-90% non-condensing
Storage Humidity: 5%-90% non-condensing
Certification
FCC、CE 、RoHS、UL
