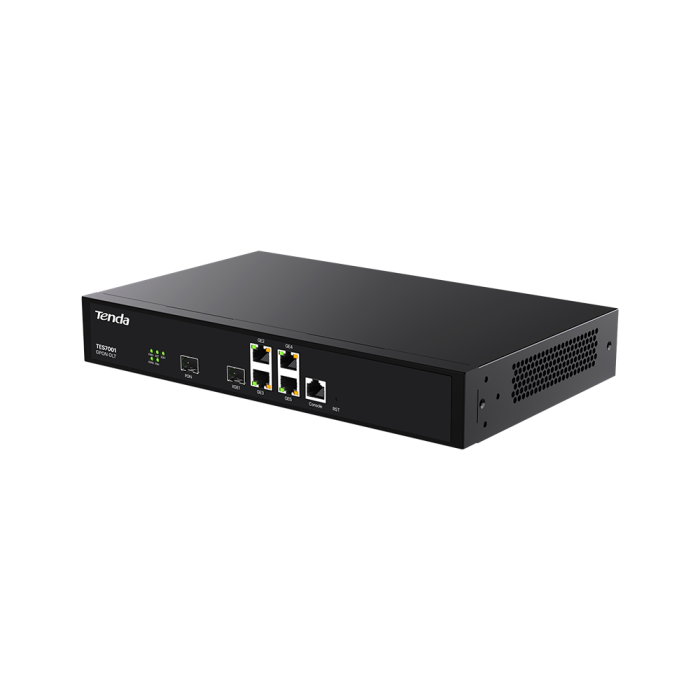

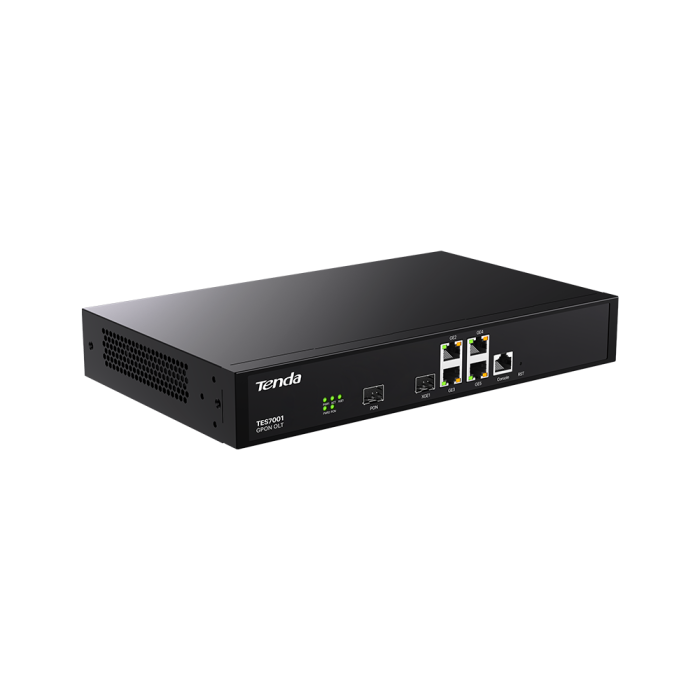

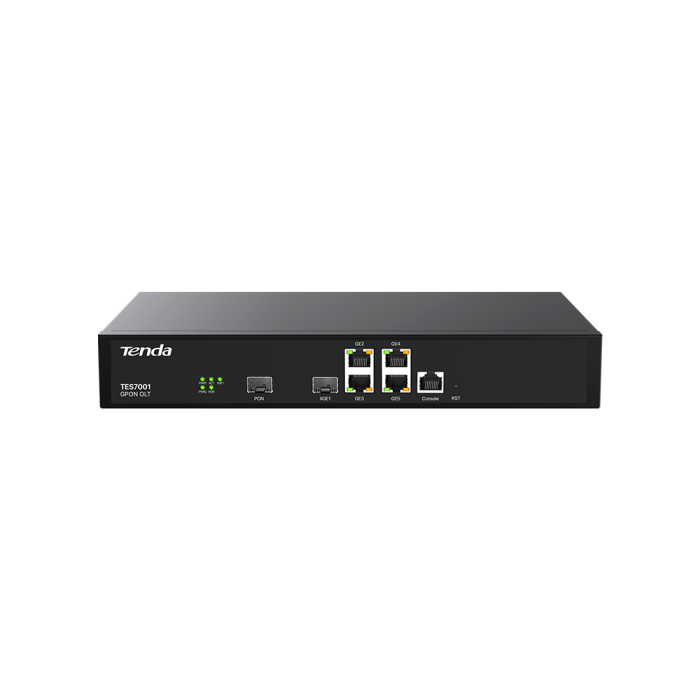

Tenda TES7001 Single Port GPON OLT
- Flexible deployment and fast access
- Any ONU device under the same PON can achieve layer L2 data forwarding
- Remote restart of PSE equipment
- Four steps complete the equipment management and business,achieve a quick and convenient start
- Highly reliable：Working temperature -20 C to+55 C
- External Power Supply:Dual AC(100 - 240V)
- 1xGPON Port
- 1x10G SFP/SFP+ Port +4x GE RJ45 Ports
Hardware
Standards
ITU G.984.x, ITU G.988
Uplink
1 x10G SFP/SFP+ Port
4 x1000Mbps RJ45 Ports
1 xConsole port
GPON Port
1 xGPON port
LED
2 xPWR
1 xACT
1 xPON
1 xXGE
Button
1 xRST Button
Optical Mode
Follow ITU-TG.984.2 ClassB+/ClassC+/ClassC++
Optical Wavelength
TX 1490nm, RX 1310nm
Transmission Distance
20km Max
Bandwidth
Upstream 1.244Gbps , Downstream 2.488Gbps
ONU Access NUM
128
Dimensions （L×W×H);
294 x180 x44mm

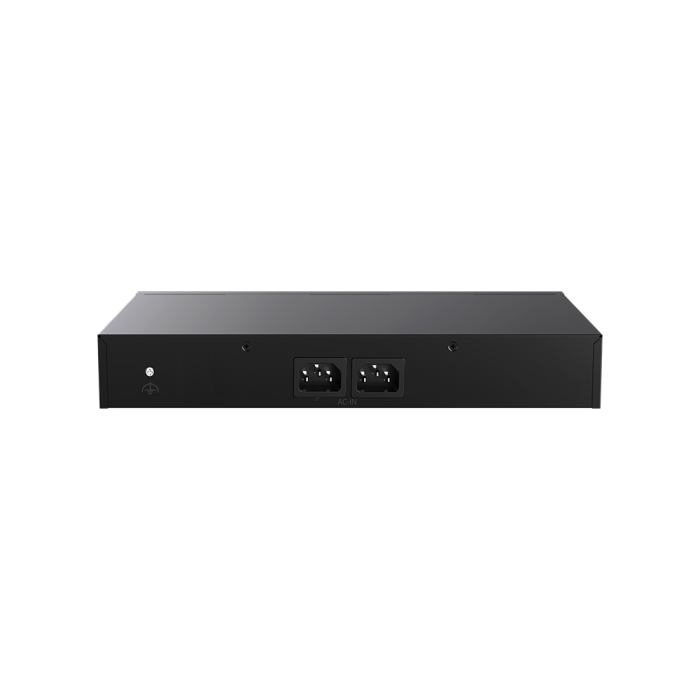

External Power Supply
Dual AC （100～240V ）
Power Consumption
≤13W
Certification
CE, RoHS
Software
MAC address
4K
VLAN
Support 512 concurrent VLAN
Support VLAN Transparent/Tag/Trunk mode
IGMP
Support IGMPV2/IGMPV3
Support IGMP SNOOPING
Support Concurrent 512 multicast groups
Loop Detection
Support Loopback
Port Rate Limit
Support Port Rate Limit
Port Mirro
Support Port Mirror
Flowcontrol
IEEE802.X flowcontrol
Port Statistic
Support Port Statistic And Monitoring
DBA
Support Tcont DBA
Min configration bandwidth is 128kbit/s , the particle is for 64kbit/s
Effecient Configuration
Provide batch configuring ONT template, support DBA, VLAN, PoE
System Management
Standard OMCI management function
Support in-band management
Support CLI, Web network management
Support batch ONT remote upgrade
Optical power detection
Support Uplink port optical parameter detection
Support PON port optical parameter detection
Support batch ONT optical parameter detection
Redundant Backup
Supports dual power redundancy backup, the dual mirroring software and configure
Link Monitor
Network management supports monitoring optical link index
Network management supports data flow statistics of all service ports
Support auto alarm when link index degrades
Long-duration luminescence ONT detection
Environment
Operating Temperature
-20C - 55C
Storage Temperature
-40C - 70C
Operating Humidity
10% - 95% （Non-condensing）
Storage Humidity
5% - 95% (Non-condensing)
