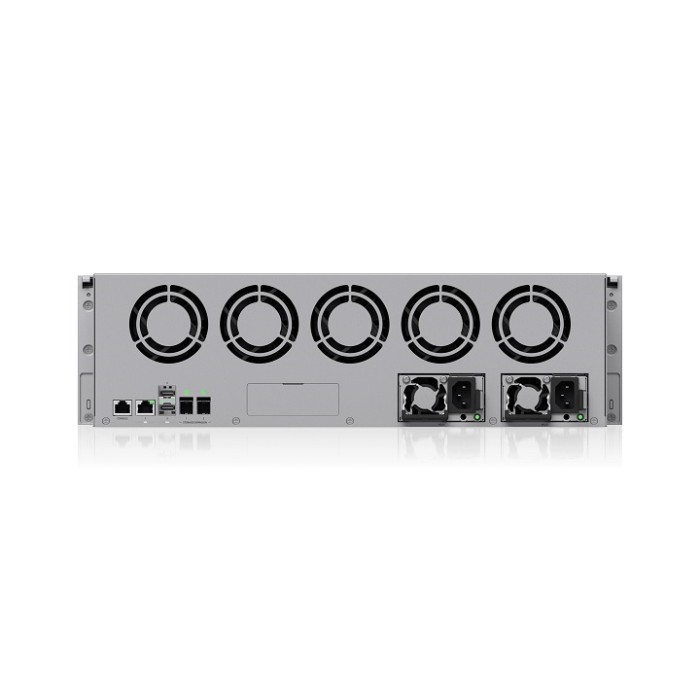

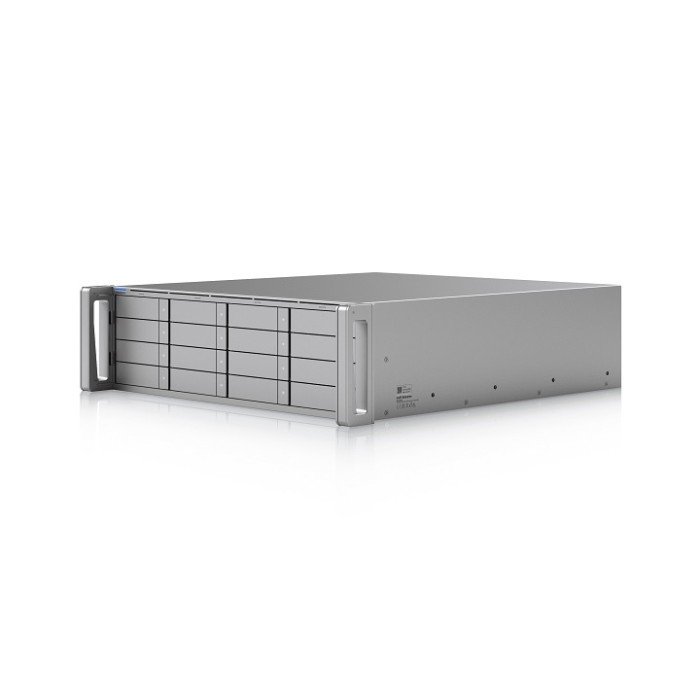

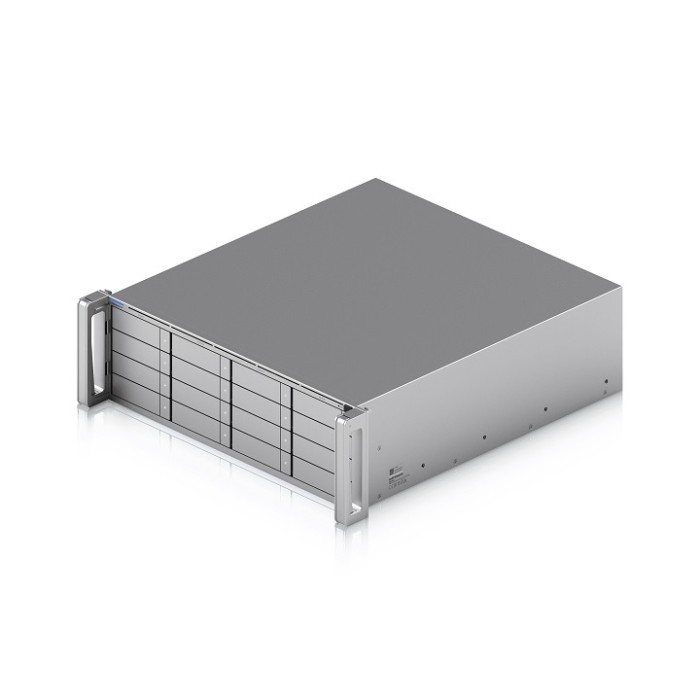

Ubiquiti ENAS UniFi Enterprise NAS 16-Bay 3U Rackmount Storage Server
3U rack-mount NAS with sixteen 3.5"/2.5" SATA bays, dual 25 Gbps SFP28 and 10 GbE RJ45 ports, M.2 NVMe support and redundant CRPS power for scalable, high-performance storage deployments.
| Dimensions | 481.4 x 480 x 132 mm (19 x 18.9 x 5.2") |
| Storage Capacity | (16) 2.5"/3.5" drive bays (2) M.2 NVMe bays |
| Networking Interface | (2) 25G SFP28 (25G/10G/1G) (1) 10 GbE RJ45 (10G/5G/2.5G/1G/100M) |
| Expansion Port | (2) SFF-8644 (24G) |
| Power Redundancy | ✓ |
| Form Factor | Rack mount (3U) |
| Hardware | |
| Hard Drive Capacity | (16) 2.5/3.5" HDD / SSD support (2) M.2 NVMe SSD support (2) Expansion ports support |
| Max. Power Budget for Drives | 450W |
| Max. Power Consumption | 550W |
| Power Method | (2) AC input, Hot-swappable power modules |
| Power Supply | (2) Hot-swappable AC/DC 550W power modules |
| Processor | Eight-Core ARM N2 at 2.4 GHz |
| Memory | 64 GB |
| Management | Ethernet |
| RF Interface | Bluetooth 4.1 |
| Weight | 16.1 kg (35.5 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |

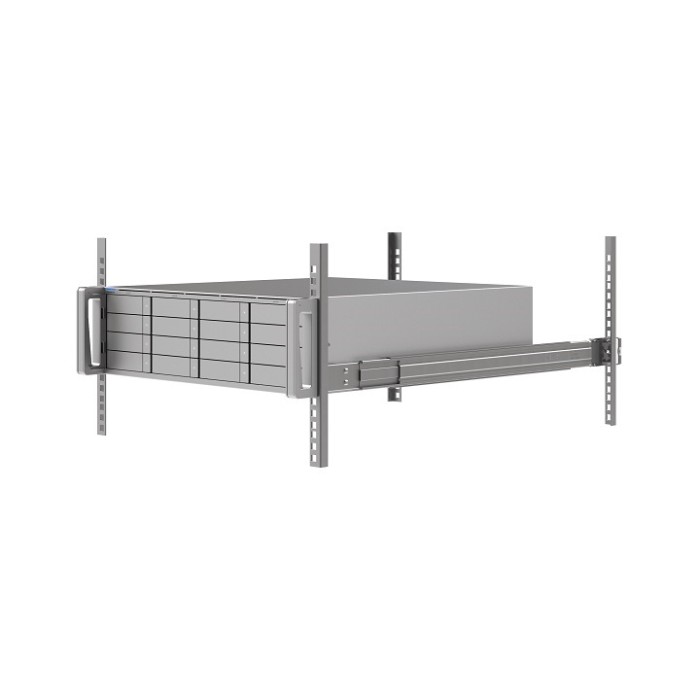

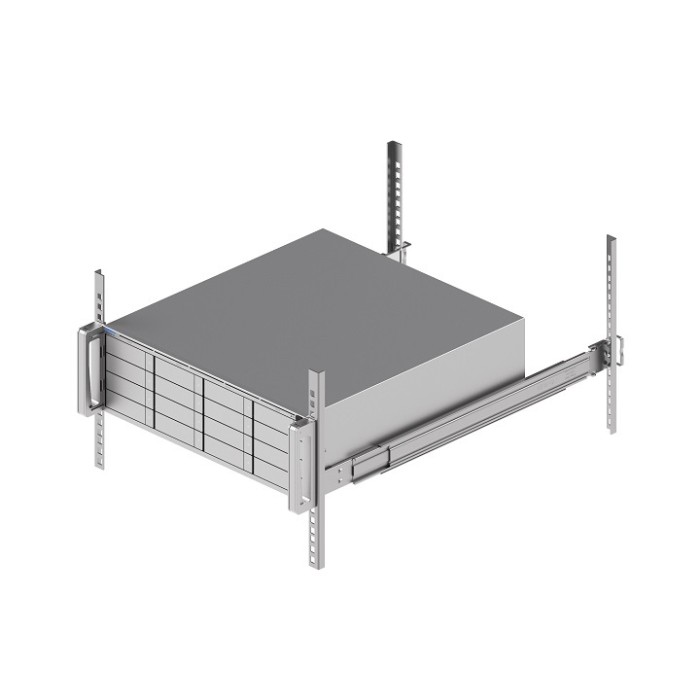

| Supported Rack Depth | The rails support 600 mm (23.6") four-post racks with square holes (9.5 x 9.5 mm) Posts depths ranging from 600–1066 mm (23.6–42") |
| Faceplate | 3U Bezel, 3U Bezel Lite (Optional) |
| LEDs | Ethernet ✓ SFP28 ✓ HDD ✓ System ✓ CRPS ✓ Expansion Port ✓ |
| Ambient Operating Temperature | -5 to 40 C (23 to 104 F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | FCC, CE, IC |
| Software | |
| Supported File Protocols | NFS ✓ SMB ✓ |
| Supported Block Protocols | iSCSI ✓ |
| Supported features on unifi.ui.com | |
| RAID Type | Mirror RAID-Z1 RAID-Z2 RAID-Z3 |
| RAID Group | Multiple |
| Hot Spare Support | ✓ |
| Personal Drive & Shared Drive | ✓ |
| SSD Cache | ✓ |
| Max. NVMe SSD Capacity Supported | 8 TiB |
| File Encryption | ✓ |
| Backup to Remote UNAS | ✓ |
| Backup to CIFS/SMB Server | ✓ |
| Backup to Cloud Services | Google Drive, OneDrive, Dropbox, Amazon S3, Backblaze B2, Wasabi |
| Snapshots | ✓ |
| Share Links | ✓ |
| Time Machine Backup | ✓ |
| Client App Support | ✓ |
| User Groups | ✓ |
