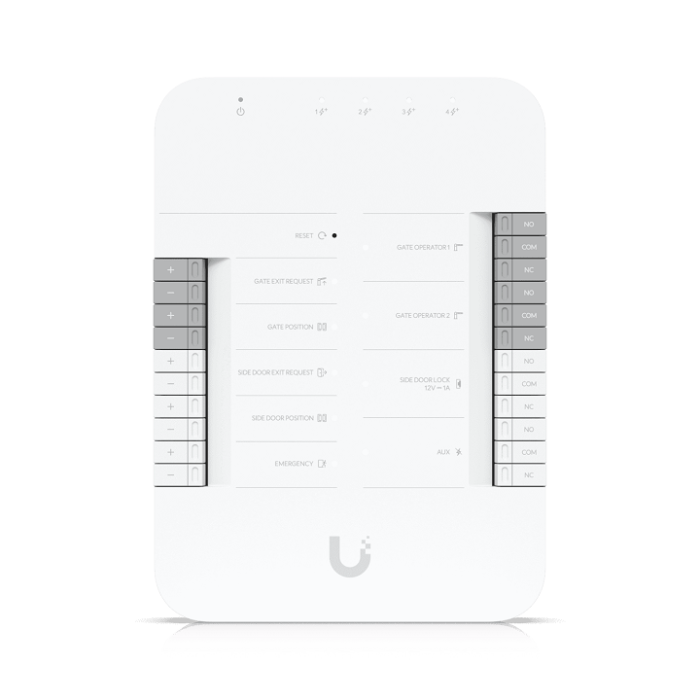

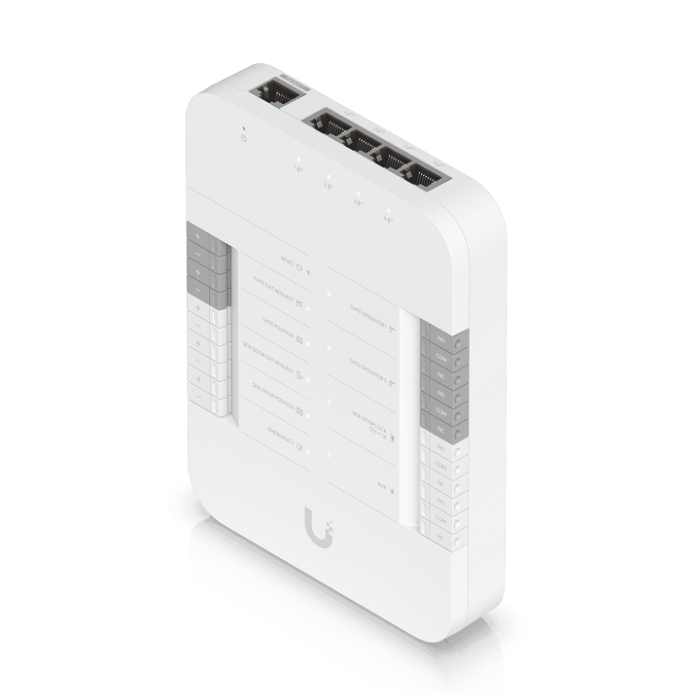

Ubiquiti UniFi Gate Hub - UA-Hub-Gate
An advanced Gate Hub enabling seamless gate access control via connected Access readers or Intercom.
| General Specifications | |
|---|---|
| Dimensions | 175 x 126 x 26 mm (6.9 x 5 x 1 in) |
| Enclosure Material | Polycarbonate |
| Mounting | DIN-rail (Included) |
| UniFi Application & Compliance | |
| Management Application | UniFi Access |
| Supported Doors | 1 gate, 1 side door |
| Maximum User Count | 6,000 |
| NDAA Compliant | Yes |
| UL 294 Level |
Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Inputs & Outputs | |
| Input Terminals |
Gate exit request Gate position Side door exit request Side door position Emergency |
| Digital Inputs |
Gate exit request Gate position Side door exit request Side door position Emergency |
| Dry Output Relay |
(2) Operator: 30V DC, up to 1A (1) Aux: 30V DC, up to 1A |
| Powered Output Relay | Side door lock: 12V DC, up to 1A |
| Power & Networking | |
| Power Method | PoE++ |
| PoE Interface |
(1) PoE++ input, 50V DC, 1A (4) PoE+ outputs, 50V DC, 30W per port (Max 55W aggregated) |
| Networking Interface | (5) 10/100/1000 Base-T |
| Max Power Consumption |
22W (without PoE output) 60W (with PoE output) |
| Environmental | |
| Installation Environment |
Indoor only (device itself) Outdoor use with waterproof junction box |
| Operating Temperature | -30 to 60 C (-22 to 140 F) |
| Operating Humidity | 5 to 90% non-condensing |
| Other | |
| LEDs | W / B |
| Buttons | Factory reset (1) |
| CAN/ULC-60839-11-1 Grade | Grade I |
| Document Reference | UA-Hub-Gate, V01 |
| Software Information | Software version available at https://unifi.ui.com |
