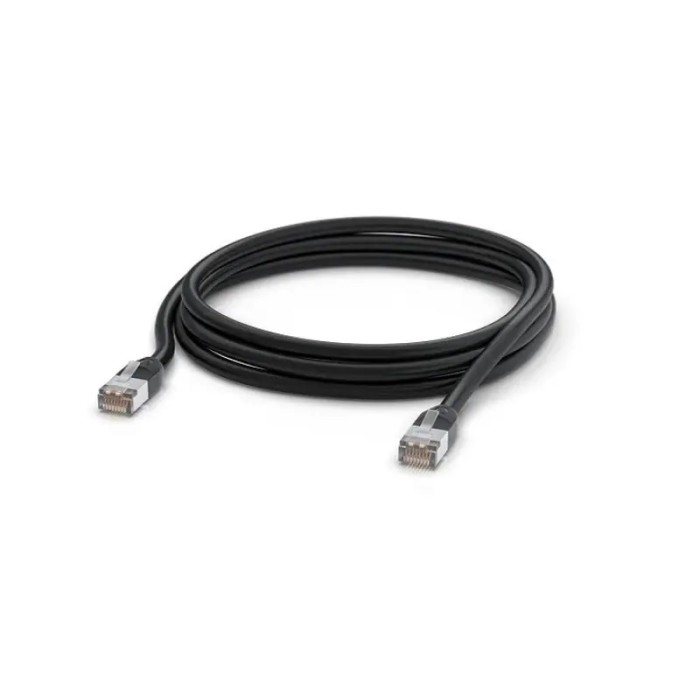

Ubiquiti UniFi Patch Cable Outdoor - UACC-Cable-Patch-Outdoor-3M-BK - Black
Rugged, outdoor patch cable designed to function in the harshest environments.
Shielded RJ45
Insulated, weatherproof jacket
Internal foil shielding and drain wire for increased ESD damage protection
Cable length: 1 to 8 m
| Product Specifications | |
|---|---|
| Available Lengths |
1, 2, 3, 5, 8 m (3.3, 6.6, 9.8, 16.4, 26.3 ft) |
| Available Colors | White, Black |
| Pack Options | Single Unit |
| Supported Data Rate | GbE |
| Supported PoE Type | Up to PoE+++ |
| Connector | (2) Shielding RJ45 |
| Operating Environment | Outdoor |
| Jacket Diameter | 6.3 mm (0.25") |
| Jacket Material | Thermoplastic elastomer (TPE) |
| Shielding Type | S/FTP |
| Conductor Type | Stranded copper |
| Conductor Wire Gauge | 24 AWG |
| Bend Radius | Min. 50.4 mm (1.98") |
| UV Resistance | ASTM G 151/154 |
| Flame Rating | VW-1 (UL1581) |
| Standards |
TIA/EIA-568-B.2 ISO/IEC 11801 |
| Installation Temperature | -20 to 60C (-4 to 140F) |
| Ambient Storage Temperature | -40 to 80C (-40 to 176F) |
| Ambient Operating Temperature | -30 to 75C (-22 to 167F) |
