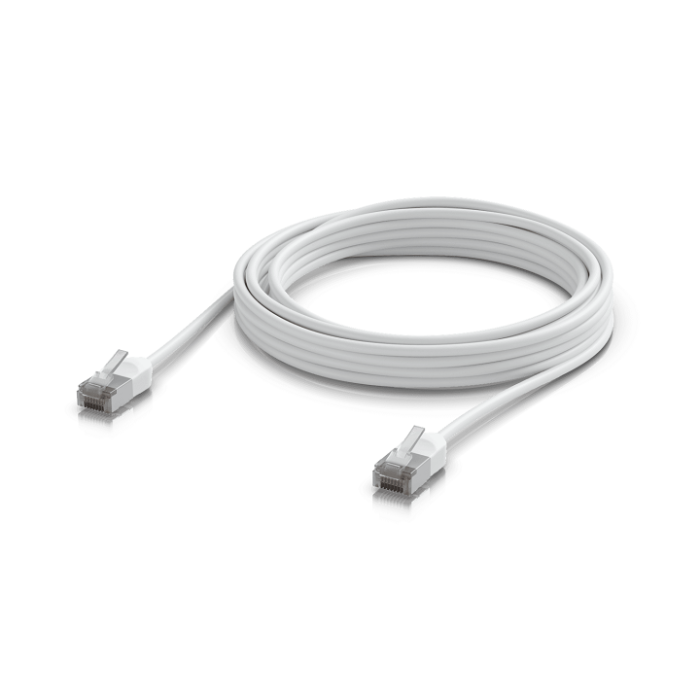

Ubiquiti UniFi Premium Patch Cable Outdoor - UACC-Cable-Patch-Outdoor-C6A-5M-W - White
Ultra-thin, rugged, shielded outdoor patch cable, designed and optimized to perform in the harshest environments for 10 GbE networking.
Shielded RJ45
Insulated, weatherproof jacket
Internal foil shielding and drain wire for increased ESD damage protection
— 3.5 mm outer diameter for 1-8 m lengths
— 3.9 mm outer diameter for 12-15 m lengths
Length: 1 to 15 m
| Product Specifications | |
|---|---|
| Available Lengths |
End-to-end: 1, 2, 3, 5, 8, 12, 15 m (3.3, 6.6, 9.8, 16.4, 26.2, 39.8, 49.2 ft) |
| Available Colors | White, Black |
| Pack Options | Single Unit |
| Supported Data Rate | 10G |
| Supported PoE Type | Up to PoE+++ |
| Connector | (2) Frosted booted and shielding RJ45 |
| Operating Environment | Outdoor |
| Jacket Diameter |
1–8 m: 3.5 mm (0.14") 12–15 m: 3.9 mm (0.15") |
| Jacket Material | Thermoplastic elastomer (TPE) |
| Shielding Type | F/UTP |
| Conductor Type | Stranded copper |
| Conductor Wire Gauge |
1–8 m (3–26 ft): 34 AWG 12–15 m (39–49 ft): 32 AWG |
| Bend Radius |
1–8 m: Min. 28 mm (1.1") 12–15 m: Min. 31 mm (1.22") |
| UV Resistance | ISO4892-2 |
| Flame Rating | VW-1 (UL1581) |
| Standards |
TIA/EIA-568-B.2 ISO/IEC 11801 |
| Installation Temperature | -20 to 60C (-4 to 140F) |
| Ambient Storage Temperature | -40 to 85C (-40 to 185F) |
| Ambient Operating Temperature | -20 to 60C (-4 to 140F) |
