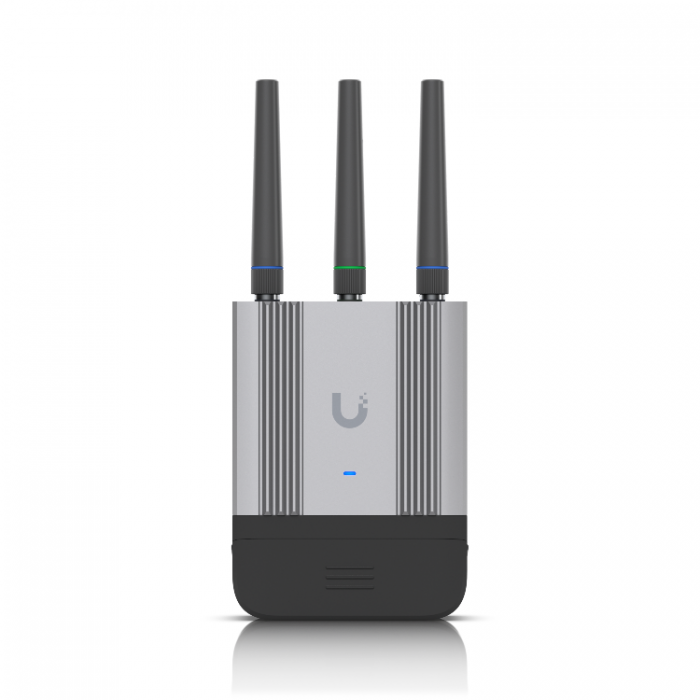

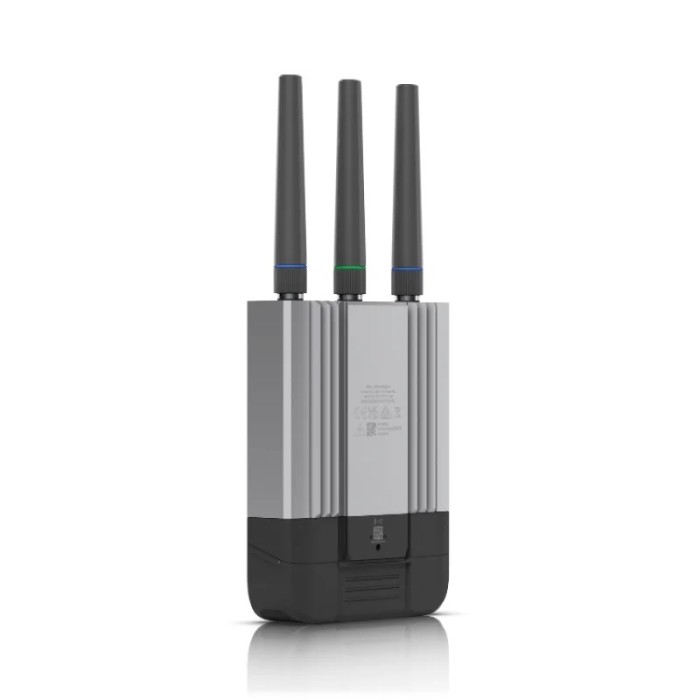

Ubiquiti Mobile Router Industrial - UMR-Industrial-EU
Compact, ruggedized, and carrier unlocked LTE Cat 4 mobile WiFi router designed for indoor/outdoor IoT applications.
Site-to-site VPN and VPN client routing
(2) GbE ports with (1) PoE output
Powered using PoE, USB Type-C, or 4-pin DC power socket
Outdoor GPS location tracking
Flexible wall, pole, and DIN rail mounting
Weatherproof (outdoor exposed) with the included cover
Optional Mobility Cloud subscription
| Mechanical | |
|---|---|
| Dimensions | Without antennas and outdoor cover: 114.5 x 93.6 x 32 mm (4.5 x 3.7 x 1.3") With antennas: 213 x 93.6 x 32 mm (8.3 x 3.7 x 1.3") With antennas and outdoor cover: 217 x 94 x 32 mm (8.5 x 3.7 x 1.3") |
| Enclosure Material | Polycarbonate, aluminum |
| Mount Material | Wall/pole mount: polycarbonate DIN rail mount: polycarbonate |
| Pole Mount Diameter | 1–2" on pipe outer diameter |
| Wind Loading | 38.8 N at 200 km/h (8.7 lbf at 125 mph) |
| Weatherproofing | Device with outdoor cover: IP66 |
| Hardware | |
| Management Interface | Ethernet |
| Networking Interface | (2) GbE RJ45 ports |
| LTE Module | Category 4 radio |
| WiFi | WiFi 4 (802.11 b/g/n), 2.4G, 20/40 MHz |
| PoE Interface | (1) PoE input (1) PoE output (Max. 10W, requires PoE+ switch) |
| Power Supply | UniFi PoE switch (48—54V DC) USB Type-C (5V DC) 4-pin ATX DC power socket (9—30V DC) |
| Max. Power Consumption | 12.5W |
| SIM | nano-SIM (4FF) |
| LTE Bands | B2, B4, B5, B12, B13, B14, B25, B26, B66, B71 |
| LTE Throughput Speed | Download 150 Mbps / Upload 50 Mbps |
| GPS | Yes |
| Antenna Connectors | (1) Mobile 1: SMA female, 1Tx/1Rx (1) Mobile 2: SMA female, 1Rx (1) GPS: SMA female (2) WiFi: RP-SMA female |
| External Antennas | (2) Mobile/LTE antennas with SMA male (1) GPS antenna with SMA male (2) WiFi antennas with RP-SMA male |
| LED | Status: blue/white |
| Button | Factory reset |
| Mounting | DIN rail/wall/pole mount (Included) |
| Operating Temperature | -40 to 70 C (-40 to 158 F) |
| Operating Humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, PTCRB, GCF, AT&T, T-Mobile, Verizon, Wi-Fi Alliance® |
| Supported WiFi Data Rates | |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (WiFi 4) | 6.5 Mbps to 300 Mbps (MCS0 - MCS7, HT 20/40) |
