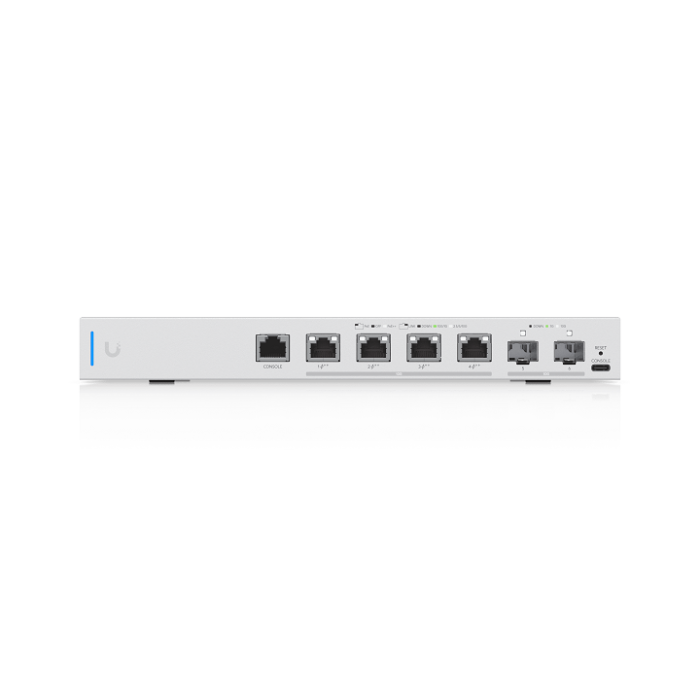

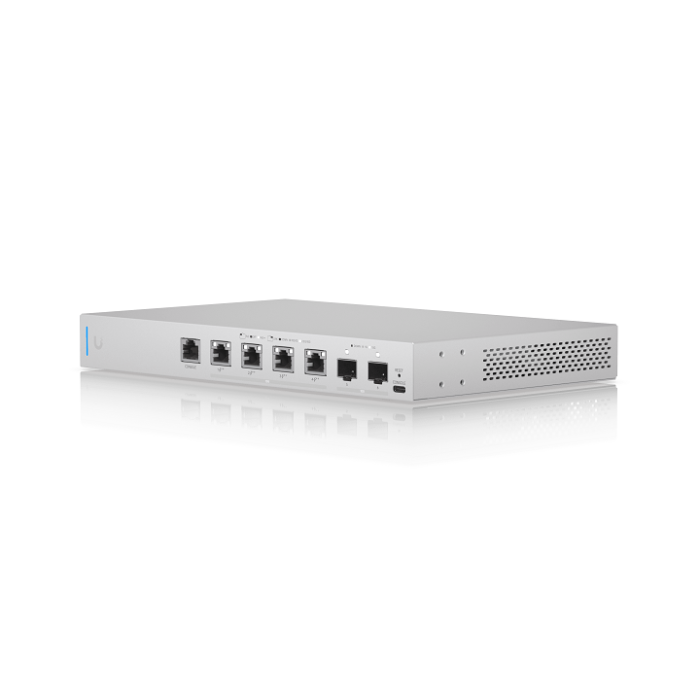

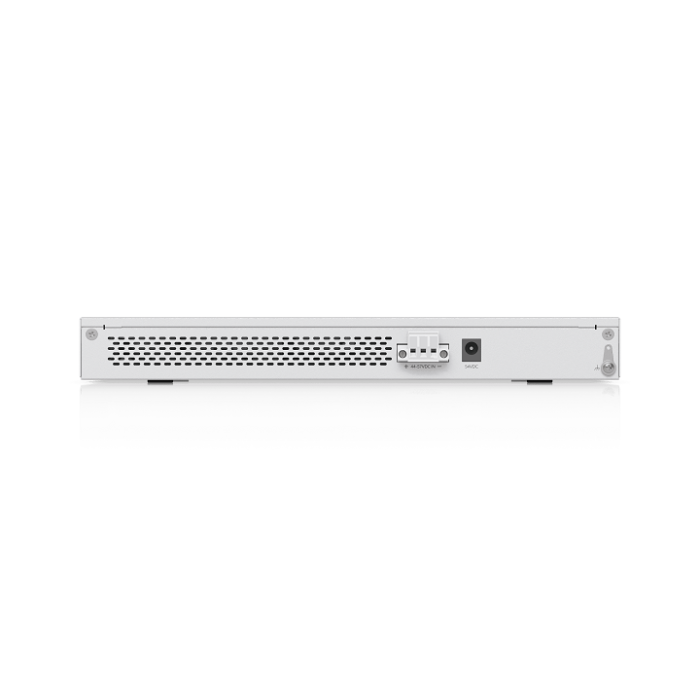

Ubiquiti US-XG-6PoE XG 6 PoE (Gen1) Layer 3 PoE Switch
A Layer 3, PoE switch with (4) 10 GbE, PoE++ RJ45 ports and (2) 10G SFP+ ports.
| Mechanical | |
|---|---|
| Dimensions | 165 x 268.1 x 31.8 mm (6.5 x 10.6 x 1.3") |
| Enclosure Material | SGCC steel |
| Hardware | |
| Management Interface | Ethernet In-Band |
| Networking Interface | (4) 1/2.5/5/10 GbE RJ45 ports (2) 10G SFP+ ports |
| PoE Interface | (4) PoE++ (Pair A 1,2+; 3,6-) (Pair B 4,5+; 7,8-) |
| Total Non-Blocking Throughput | 60 Gbps |
| Switching Capacity | 120 Gbps |
| Forwarding Rate | 89.3 Mpps |
| Power Method | (1) 54V DC, 3.88A power adapter (Included) (1) DC input with terminal block |
| Power Supply | External AC/DC adapter (Included) DC power source |
| Supported Voltage Range | 44–57V DC |
| Max. Power Consumption | 40W (Excluding PoE output) |
| Total Available PoE | 170W |
| Max. PoE Wattage per Port by PSE | PoE++: 60W |
| Voltage Range PoE Mode | PoE: 44—57V PoE+/PoE++: 50—57V |
| ESD/EMP Protection | Air: +18kV, Contact: +12kV |
| Button | Factory reset |
| Ambient Operating Temperature | -5 to 45 C (23 to 113 F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| System | Status |
| Ethernet | PoE / Link / Speed / Activity |
| SFP+ | Link / Activity |
