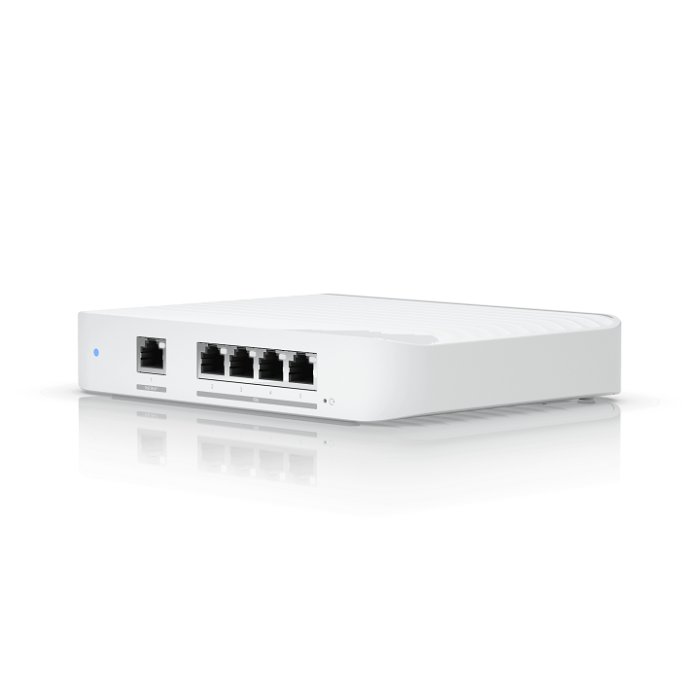

Ubiquiti Flex 10 GbE 5-port Layer 2 Switch - USW-Flex-XG-EU
A compact, 5-port, Layer 2 switch that supports 10 GbE speeds and can be powered with PoE or a 5V USB-C adapter.
| Switch Specifications | |
|---|---|
| Physical | |
| Dimensions | 135 x 185 x 32 mm (5.3 x 7.3 x 1.3") |
| Form Factor | Compact desktop, wall-mountable |
| Enclosure Material | Polycarbonate |
| Port Layout | |
| 1 GbE RJ45 | 1 (1G/100M/10M) |
| 10 GbE RJ45 | 4 |
| Performance | |
| Switching Capacity | 82 Gbps |
| Total Non-Blocking Throughput | 41 Gbps |
| Forwarding Rate | 61 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 16,000 |
| Packet Buffer Size | 1.5 MB |
| Access Lists (IPv4) | 12 |
| Access Lists (MAC) | 10 |
| Layer 2 Features | |
| LACP Port Aggregation | ✓ |
| STP & RSTP | ✓ |
| Advanced IGMP (Querier, Fast Leave, Router Port) | ✓ |
| IGMP Snooping | ✓ |
| 802.1X Control | ✓ |
| MAC-Based ACLs & Device Isolation | ✓ |
| DHCP Snooping & Guarding | ✓ |
| Egress Rate Limit | ✓ |
| Flow Control | ✓ |
| Storm Control | ✓ |
| Multicast & Broadcast Rate Limiting | ✓ |
| MAC Address Blocking | ✓ |
| IP-Based ACLs & Network Isolation | ✓ |
| MAC-Based Port Restriction | ✓ |
| Port Isolation | ✓ |
| Port Mirroring | ✓ |
| Jumbo Frames | ✓ |
| LLDP-MED | ✓ |
| Voice VLAN | ✓ |
| Loop Protection | ✓ |
| Power | |
| Max Power Consumption | 25W |
| Power Method | (1) PoE+ (1) USB Type-C, 5V DC, 5A |
| Power Input Method | USB Input, PoE |
| Power Supply | AC/DC external, 25W |
| Supported Voltage Range | 4.8–5.2V DC (USB) 44–57V (PoE) |
| Heat Dissipation | 85.3 BTU/hr |
| Protection | |
| ESD Protection | Air: +16 kV, Contact: +12 kV |
| Environmental | |
| Operating Temperature | -5 to 45C (23 to 113F) |
| Operating Humidity | 10% to 90% (non-condensing) |
| Compliance | |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Anatel: 06606-25-08356 |
| Software Requirements | |
| Application | UniFi Network |
| Minimum Version | 6.1.67 or later |
