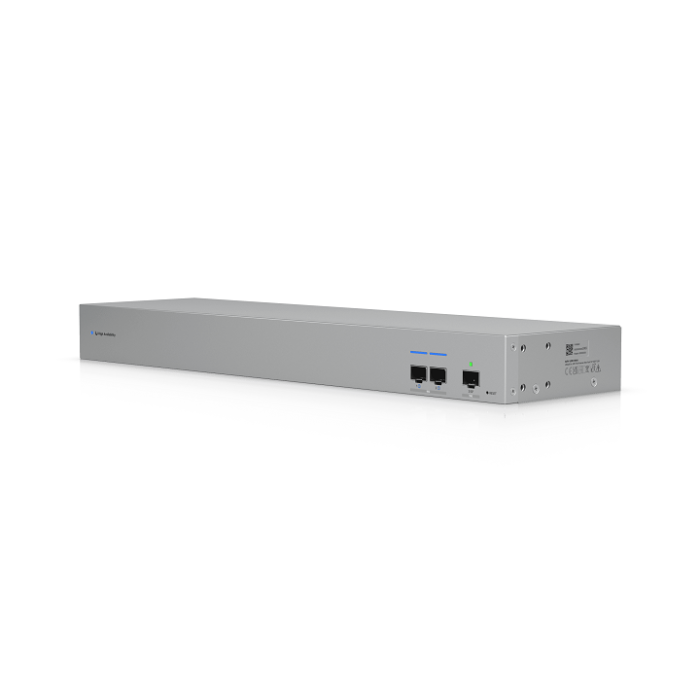

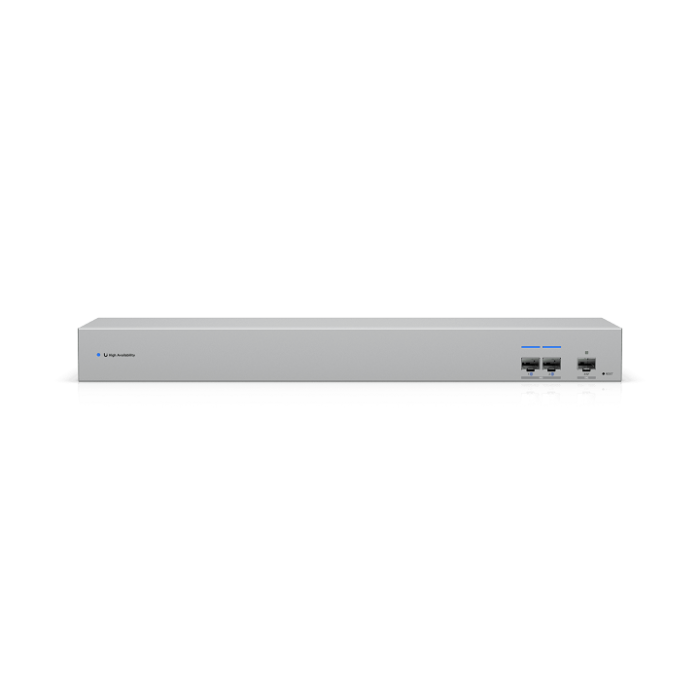

Ubiquiti 10 GbE WAN Switch RJ45 - USW-WAN-RJ45-UK
10 GbE WAN Switch linking two Shadow Mode High Availability UniFi Gateways to a single ISP.
| Device Specifications | |
|---|---|
| Physical | |
| Dimensions | 442.4 x 120 x 43.7 mm (17.4 x 4.72 x 1.7") |
| Form Factor | Rack mount (1U) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| ESD Protection | Air: +16kV, Contact: +10kV |
| Ports & Connectivity | |
| 1 GbE RJ45 |
1 (1G/100M/10M) |
| 10 GbE RJ45 |
3 (10G/5G/2.5G/1G/100M) |
| Redundancy | (2) AC inputs |
| Performance | |
| Switching Capacity | 20 Gbps |
| Total Non-Blocking Throughput | 10 Gbps |
| Forwarding Rate | 15 Mpps |
| Hardware | |
| Max. Power Consumption | 18W |
| Power Method | (2) Universal input, 100–240V AC, 50/60 Hz |
| Power Input Method | AC input |
| Power Supply | (2) AC/DC, internal, 36W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet |
| Environmental | |
| Operating Temperature | -5 to 40C (23 to 104F) |
| Operating Humidity | 10 to 90% noncondensing |
| LED Indicators | |
| Ethernet | Yes |
| System | Yes |
| Compliance | |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Anatel: 04273-25-08356 |
| Software | |
| Application Requirements | UniFi Network Version 9.1.120 and later |
