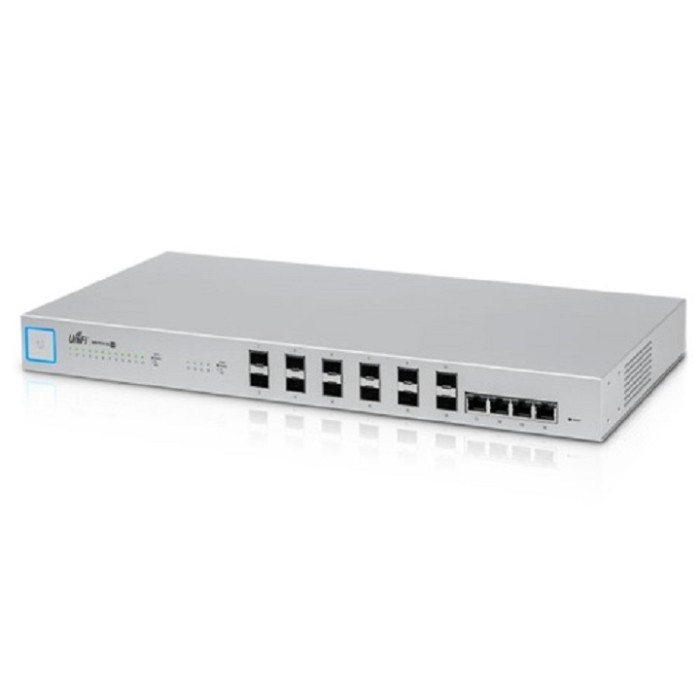

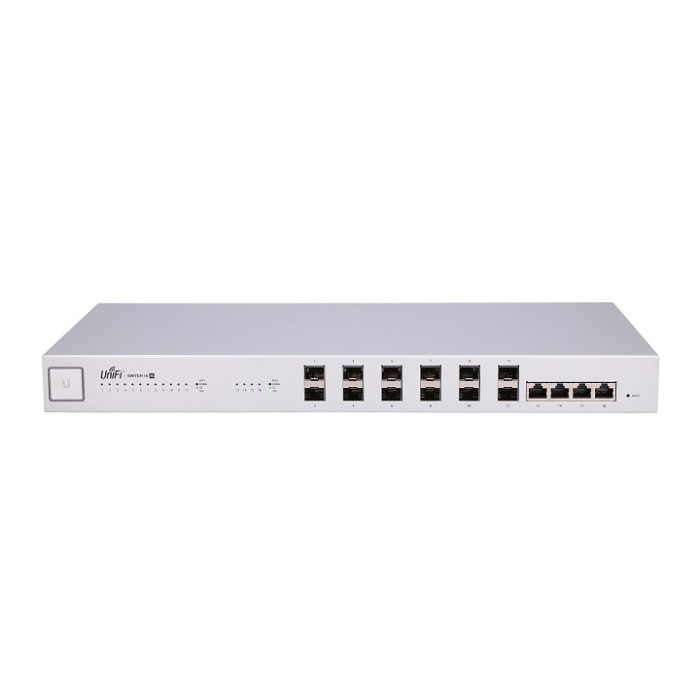

Ubiquiti US-16-XG-EU 10G 16-Port Managed Aggregation Switch
Ubiquiti US-16-XG-EU 10G 16-Port Managed Aggregation Switch
| Hardware Specifications | |
|---|---|
| Dimensions | 443 x 221 x 43 mm (17.44 x 8.70 x 1.69") |
| Enclosure Characteristics | SGCC Steel |
| Total Non-Blocking Throughput | 160 Gbps |
| Switching Capacity | 320 Gbps |
| Forwarding Rate | 238.10 Mpps |
| Max. DC Power Consumption | 36W (Excludes SFP/SFP+ Modules) |
| Power | |
| Power Method |
AC: 100–240VAC / 50–60 Hz, Universal Input DC: 56W, 57 to 20V, with 48/24VDC Terminal Block |
| Supported Voltage Range | 100–240VAC / 57–20VDC |
| Power Supply | AC/DC, Internal, 56W DC |
| Indicators & Sound | |
| LEDs Per Data Port | Speed / Link / Activity |
| Sound Level* |
Fan Level 0: 1.0 dBr Fan Level 1: 10.7 dBr Fan Level 2: 12.2 dBr Fan Level 3: 12.8 dBr Background noise level: 27.5 dBa |
| Networking Interfaces | |
| Data Ports |
(12) 1/10 Gbps SFP+ Ethernet Ports (4) 1/10 Gbps RJ45 Ethernet Ports |
| Management Interface | (1) RJ45 Serial Port (Out-of-Band), Ethernet Ports (In-Band) |
| Environmental & Compliance | |
| Certifications | CE, FCC, IC |
| Rack Mount | Yes, 1U High |
| ESD/EMP Protection | Air: +24 kV, Contact: +24 kV |
| Operating Temperature | -5 to 40C (23 to 104 F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| SFP+ Module Compatibility | |
| UF-MM-10G | 12 |
| UF-SM-10G | 12 |
| UF-RJ45-10G | 4 |
